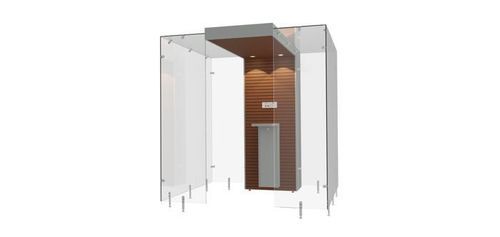

HEPA filter smoking booth SP200

tempered glassMDFsteel

Overview
Our SP200 smoking cabin is a modular indoor smoking cabin with a high-performance air filtration system designed to contain and filter smoke and odour within the unit. It is engineered to provide controlled airflow, easy maintenance and modular expansion options.

Key Features

• Tested and certified for quality and safety.
• Customisable solutions (colours, integrated options, sizes).
• Multi-stage filtration with performance maintained through routine servicing.
• Long service life with replaceable filter elements.
• Improved indoor air quality for health and safety.
• Modular and relocatable: expand, reduce or move the unit as needed.
• Simple installation and heavy-duty operation design.

Recommended Areas of Application

• Allows smokers and non-smokers to remain in the same room by creating a smoke-controlled atmosphere.
• Supports social interaction without persistent odours or high secondhand smoke exposure.
• Capacity and layout: base configuration accommodates up to four smokers; expandable by adding modules; base footprint starts at 1.2 m2. SP Series units are typically positioned alongside walls.

Door Type / Entrance Options

• Open
• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Benefits

• Removes smoke and airborne contaminants to provide cleaner indoor air.
• Shorter, more convenient smoking breaks due to on-site placement.
• Energy-efficient operation with sensor-activated lighting and ventilation.
• Reduces operational downtime and maintenance costs while enhancing venue comfort.
• Contemporary appearance suitable for offices, hotels, airports and public spaces.

Technology / How it works
Smoke is captured within the cabin and routed through a multi-stage filtration system where gases and fine particles are removed; pollutants are retained in the filters and cleaned air is returned to the environment. Regular maintenance and filter replacement are required to keep performance optimal. Ash and cigarette ends can be disposed of in the aluminium ashtray provided inside the cabin.

Technical specifications

• Model: SP200 Indoor Smoking Cabin
• Dimensions (L x D x H) – Weight incl. filters: 2000 x 2000 x 2200 mm
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
• Main housing colours: Frame powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); Wooden panel: Mahogany or Maple; other colours optional
• Glass: 8 mm tempered glass
• Simultaneous users (recommended): 6~8 people (recommended occupancy may vary with personal items and comfort)
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor activation on entry reduces lighting and ventilation consumption
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door
• Customization (optional): LED screen, various integrated ashtray sizes, customised colours
