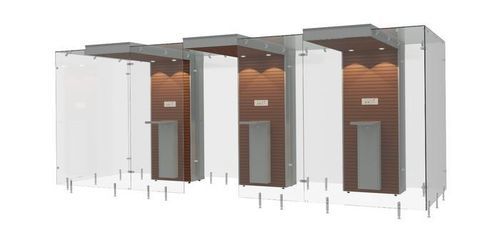

HEPA filter smoking booth 3SP200

tempered glassMDFsteel

Overview
A modular indoor smoking cabin with an air filtration system designed to capture smoke and odor inside the cabin and return clean, breathable air. The filtration stages retain particulates and gases before they exit the cabin. Routine maintenance of filters and components is recommended to preserve filtration performance.

Key Features

• Tested and certified for quality and safety.
• Modular and customizable solutions to adapt size and layout.
• Filtration system designed for effective particle and gas removal with scheduled maintenance.
• Engineered for long service life and reliability.

Recommended Areas of Application

• Separates smoking activity within indoor spaces while maintaining a smoke-controlled environment for others.
• Supports interaction and socializing without widespread odor or secondhand smoke exposure.
• Cabin starts at 3.6 m² and can be expanded by adding modules; SP Series units are often positioned alongside walls. Example configurations may accommodate up to four simultaneous smokers in smaller modules.

Benefits

• Reduces smoke and odors in the surrounding environment by capturing pollutants at source.
• Enables shorter, convenient smoking breaks through strategic placement.
• Energy-efficient operation with sensor-controlled functions.
• Reduces operational disruption while offering controlled smoking areas for staff and visitors.
• Movable and freestanding units designed for easy cleaning and maintenance.
• Layout, capacity and finishes can be customised to site requirements.

Door Type / Entrance Options

• Open
• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Images & Finishes

• Frame housing: powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); other RAL colours optional.
• Wooden panel options: Mahogany or Maple; other colours available on request.

How it works

• Smoke and gases are drawn into the filtration system before they can escape the cabin.
• Pollutants pass through filter stages where particulates and gases are retained; cleaned air is returned to the cabin or exhausted as specified.
• Included aluminum ashtray provides internal disposal for ash and cigarette ends.

Technical specifications

• Model: 3SP200 Indoor Smoking Cabin
• Dimensions (L x D x H) – Weight incl. filters: 54000 x 2000 x 2200 mm
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
• Main housing colors: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey). Wooden Panel: Mahogany or Maple. Other colours optional.
• Glass: 8 mm tempered glass
• Simultaneous users (recommended): 12~18 people (note: modular configurations may start with smaller modules accommodating up to four smokers; capacity is expandable)
• FEATURES: Adjustable airflow speeds for standby and operating modes.
• Power saving: sensor activation upon entry reduces lighting and ventilation to save energy.
• Modular construction: easy to reduce or expand cabin size; freestanding and movable.
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door.
• Customization (optional): LED screen, various integrated ashtray sizes, customised colours.
