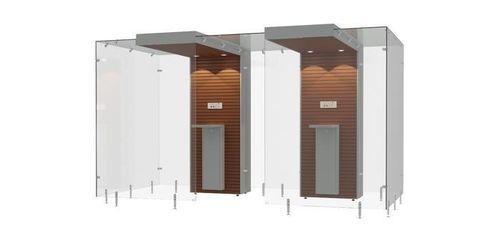

HEPA filter smoking booth 2SP200

tempered glassMDFsteel

Overview
A modular indoor smoking cabin designed to contain smoke and odors using a multi-stage air filtration system.

Summary
The 2SP200 provides a controlled interior space where smoke is captured and processed by dedicated filters. The unit is modular for size adaptation and is designed for integration in workplaces, public buildings and hospitality environments.

Key Features

• Multi-stage air filtration that retains particles and gases.
• Modular construction for expansion or reduction of cabin footprint.
• Available entrance configurations: open, semi-open, soft-close sliding or automatic door.
• Optional customisation: LED screen, integrated ashtray sizes, colour finishes.

Recommended Areas of Application

• Indoor areas where separation of smoking and non-smoking zones is required while maintaining shared circulation spaces.
• Installations in offices, airports, hospitality venues and industrial sites where controlled smoking enclosures are needed.
• Base module size starts at 2.4 m²; configurations vary according to layout and number of modules.

Benefits

• Reduces smoke and odor transfer to surrounding areas.
• Enables shorter, convenient smoking breaks due to flexible placement.
• Energy-saving control modes with sensor-activated lighting and ventilation.
• Freestanding and movable design for site adaptability.

Technology / How it Works

• 1–2: Air and smoke are captured within the cabin and directed towards the filtration unit.
• 2–3: Filtration stages remove particles and treat gases to deliver cleaned air back to the room.
• 4: Ash and cigarette ends are collected in the integrated aluminum ashtray.
• Regular filter maintenance is required to maintain filtration efficiency and air quality.

Door & Entrance Options

• Open, Semi-Open, Soft Close Sliding Door, Automatic Door.

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Sensor activation adjusts lighting and ventilation on entry.
• Modular construction: Expandable or reducible cabin size; freestanding and movable.
• Customization (optional): LED screen, various integrated ashtray sizes, customised colours.

Technical Information
Model: 2SP200 Indoor Smoking Cabin
Dimensions (L x D x H) – Weight incl. filters: 37000 x 2000 x 2200 mm
Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
Main housing colours: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); Wooden panel: Mahogany or Maple; Other colours optional
Glass: 8 mm tempered glass
Simultaneous users (recommended): 8–12 people depending on configuration and comfort criteria
Includes aluminum ashtray for disposal of ash and cigarette ends

Technical Specifications

• Model: 2SP200 Indoor Smoking Cabin
• Dimensions (L x D x H): 37000 x 2000 x 2200 mm
• Main housing material: Steel SPCC 1.5 mm (frame); MDF front
• Glass: 8 mm tempered glass
• Main housing colours: Powder coated steel RAL 9005 or RAL 9006; Wooden panel: Mahogany or Maple; other colours optional
• Simultaneous users (recommended): 8–12 people
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door
• Adjustability: Variable airflow speeds for standby and operating modes
• Power saving: Sensor activation adjusts lighting and ventilation on entry
• Modular construction: Expandable/reducible cabin size; freestanding and movable
• Optional customization: LED screen, various integrated ashtray sizes, customised colours
