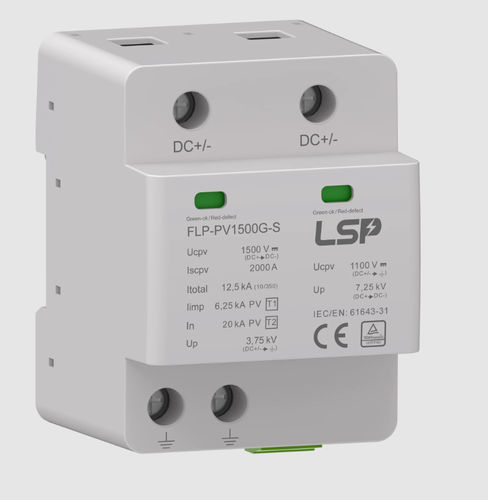

Type 1 + 2 surge protector FLP-PVG series

gas discharge tubevaristorDC

Type 1+2 DC Surge Protection Device SPD Monoblock DC SPD for Photovoltaic PV Solar Panel Inverter - FLP-PVxxxG series Type 1+2 DC Surge Protective Device SPD up to 1500 V DC for photovoltaic PV / solar system, independently tested safety through TUV and CB approval. Type 1+2 Solar Surge Protection Device SPD Monoblock DC SPD for Photovoltaic PV Solar Panel Inverter - FLP-PVxxxG series High operational reliability, thanks to a short-circuit current rating up to 2000 A. Specification: Max. continuous operating voltage Ucpv: 1000V 1500V Type 1+2 / Class I+II / Class B+C Impulse discharge current (10/350 μs) Itotal = 12,5kA @ Type 1 Impulse discharge current (10/350 μs) Iimp = 6,25kA @ Type 1 Nominal discharge current (8/20 μs) In = 20kA @ Type 2 Maximum discharge current (8/20 μs) Imax = 40kA @ Type 2 Protective elements: Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) Wiring Diagram & Installation Monoblock DC SPD for Photovoltaic PV Solar Panel Inverter - FLP-PVxxxG series This solar surge protection device SPD FLP-PVxxxG series use Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) circuits to protect electrical devices from spikes in alternating current power. The Housing of Type 1+2 PV solar DC surge protection device SPD is a monoblock design and is available with or without floating remote indication contact.
