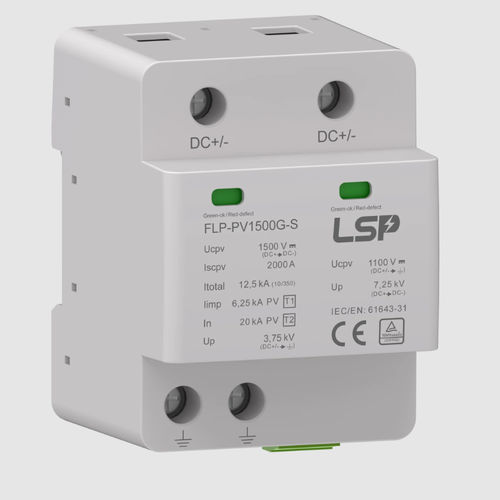

Type 1 + 2 surge protector FLP-PV1500G-S

gas discharge tubevaristorDC

DC Surge Protection Device for PV / Solar / Inverter Unprotected PV systems will suffer repeated and significant damages. This results in substantial repair and replacement costs, system downtime and loss of revenue. Properly installed surge protective devices (SPDs) will minimize the potential impact of lightning events. We are a trusted surge protection devices manufacturer in China specializing in manufacturing high-quality SPDs. With a thorough understanding of standards and regulations, LSP manufactures millions of dc surge protection devices (DC SPD) every year. 1500V DC SPD Type 1+2 DC Surge Protection Device for PV / Solar / Inverter Type 1+2 DC Surge Protective Device SPD up to 1500 V DC for photovoltaic PV / solar system, independently tested safety through TUV and CB approval. 1500V DC SPD Type 1 + Type 2 DC Surge Protection Device for PV / Solar / Inverter High operational reliability, thanks to a short-circuit current rating up to 1000 A and 2000 A. Specification: Max. continuous operating voltage Ucpv: 1500V Type 1+2 / Class I+II / Class B+C Impulse discharge current (10/350 μs) Itotal = 12,5kA @ Type 1 Impulse discharge current (10/350 μs) Iimp = 6,25kA @ Type 1 Nominal discharge current (8/20 μs) In = 20kA @ Type 2 Maximum discharge current (8/20 μs) Imax = 40kA @ Type 2 Protective elements: Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT)
