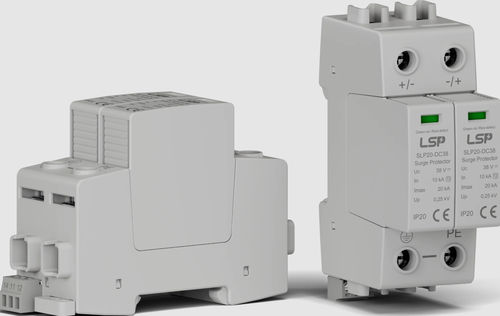

Type 2 surge protector SLP20-DC38/2S

class IIDC powervaristor

DC Surge Protector for EV Charger / Energy Storage System (ESS) / Telcom Communication The 24V DC surge protector is suitable for DIN rail or panel installation. This flexible installation method allows the device to be easily integrated into existing electrical systems, maximizing space efficiency. At the same time, it ensures reliable protection against voltage surges and enhances overall system performance. 24vdc Surge Protector Type 2 24vdc Surge Protector - SLP20-DC38/2S LSP developed wide range of DC surge protector devices used to protect equipment connected to DC power against surges due to lightning. 24vdc Surge Protector Type 2 DC Surge Protection Device - SLP20-DC38/2S These DC SPD SLP20-DC series according to IEC/EN 61643-41. Specification: Nominal working voltage Un: 24V Max. continuous operating voltage Uc: 38V Type 2 / Class II / Class C Nominal discharge current (8/20 μs) In = 10kA @ Type 2 Maximum discharge current (8/20 μs) Imax = 20kA @ Type 2 Mode of Protection: DC+/PE, DC-/PE Protective Elements: Metal Oxide Varistor (MOV)
