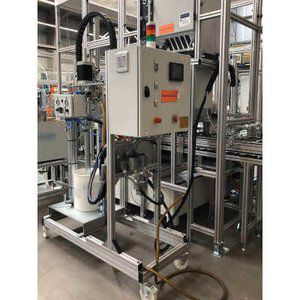

Dosing station G-Dos

G-Dos gear pump dosing systems are electrically driven systems for liquid and pasty 1K media such as lubricants, adhesives, and sealants. - Flexible Handling The handling can be either manual or as part of an automation. A wide range of pump sizes and designs allows the system to be optimally adapted to the respective application. - Precise Control and Handling The drive of the gear pump can be via an asynchronous or servo motor. Both dosing speed and dosing quantity can be set via a controller. Material supply is provided by drum pumps, material pressure vessels, or cartridge emptying systems. - Options: - Controller with storable programs - Monitoring via volume counter - Pressure monitoring - Interface for integration into automated processes - Technical Data - Dosing speed: from 0.5 ml/min to 5 l/min (depending on viscosity and mixing ratio, higher dosing speeds on request) - Viscosities: from 10 mPas to 1,500,000 mPas - Materials: unfilled, filled, abrasive - Material supply: up to approx. 50,000 mPas with material pressure vessel, up to 1,500,000 mPas with drum pumps - Electrically driven gear pump dosing system for 1K media - Manual or automated operation possible - Wide range of pump sizes and designs - Drive via asynchronous or servo motor - Adjustable dosing speed and quantity - Material supply via drum pumps, pressure vessels, or cartridge emptying - Controller with storable programs (option) - Volume counter monitoring (option) - Pressure monitoring (option) - Interface for automation (option) - Dosing speed: 0.5 ml/min to 5 l/min - Viscosity range: 10 mPas to 1,500,000 mPas - Suitable for unfilled, filled, and abrasive materials - Material supply up to 50,000 mPas with pressure vessel, up to 1,500,000 mPas with drum pump
