Adhesives dispenser E-Dos

sealerlubricantwith volumetric pump

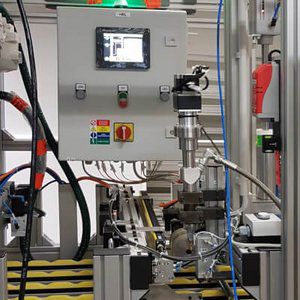

E-Dos Progressive Cavity Pump Dosing System is an electrically driven system for liquid and pasty single-component (1K) media. - Versatile Application Area The dosing system is suitable for dispensing lubricants, adhesives, and sealants and is characterized by easy integration into automated systems, but can also be used for manual dosing. Various pump sizes and designs allow the system to be adapted to different applications and materials. - Drive and Control The drive is provided by a servo or stepper motor. Dosing speed and quantity can be set via a controller. The material is supplied by drum pumps, material pressure vessels, or cartridge emptying devices. - Options: - Control with storable programs - Monitoring via volume counter - Pressure monitoring - Interface for integration into automated processes - Technical Data - Dosing speed: from 0.01 ml/min to 300 ml/min (depending on viscosity and mixing ratio, higher dosing speeds on request) - Viscosities: from 10 mPas to 1,500,000 mPas - Materials: unfilled, filled, abrasive - Material supply: up to approx. 50,000 mPas with material pressure vessel, up to 1,500,000 mPas with drum pumps - Product type: Progressive cavity pump dosing system - Drive: Servo or stepper motor - Application: Lubricants, adhesives, sealants, 1K media - Integration: Automated or manual - Pump sizes: Various, adaptable - Control: Programmable, with monitoring options - Dosing speed: 0.01–300 ml/min - Viscosity range: 10–1,500,000 mPas - Material supply: Pressure vessel or drum pump
