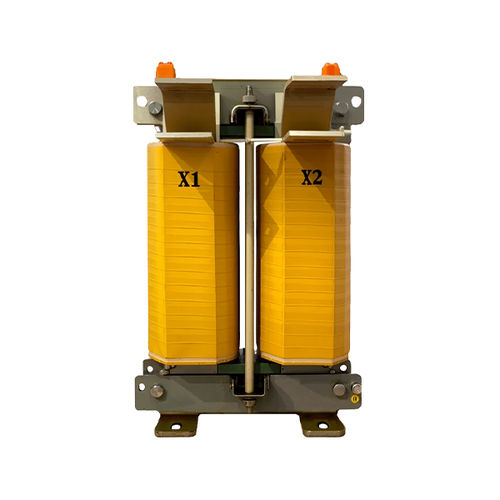

Wire-wound inductor LSDZ034

shieldedsingle-phaseDC power supply

Description: The 800A DC reactor is engineered for high-power industrial systems such as motor drives, renewable energy converters, and heavy machinery, combining VPI (Vacuum Pressure Impregnation) technology with robust electrical performance to ensure reliability in harsh environments. Product Detail 1.VPI Process for Enhanced Durability ·Superior Insulation: The VPI process ensures deep epoxy resin penetration, achieving 3000VAC insulation withstand voltage (IEC 60289 compliant) and resistance to moisture, dust, and vibration. ·Compact & Low Noise: Optimized core design reduces audible noise to ≤65dB while maintaining a compact footprint for space-constrained installations. 2.High-Efficiency Electrical Performance ·Overload Tolerance: High-saturation silicon steel cores support 20× rated current (16kA) surges, preventing magnetic saturation during grid faults or motor startups. ·Thermal Stability: Multi-stage cooling and low-loss windings limit temperature rise to <55K at 800A, ensuring continuous operation with ≥96% efficiency in high-demand settings like steel plants or mining systems. Operation Environment A)  Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B)  Ambient Temperature: -25ºC~55ºC. C)  Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
