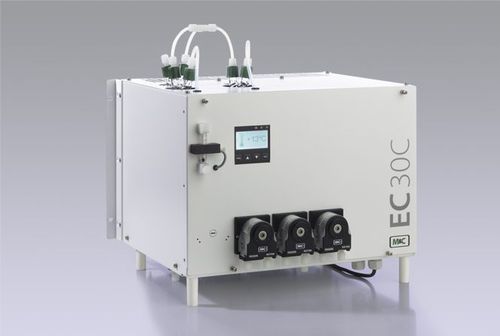

Gas cooler EC30C

for samplesrackPeltier effect

- Ultra-low gas cooler with compressor pre-cooler and 2 ultra-low Peltier cooling stages - Selectable: 1 standard Jet-Stream heat exchanger for the pre-cooler and 2 modified ones for the Peltier cooling stages - Single channel unit with a gas flow rate of max. 1 x 250 Nl/h - Cooling capacity 130 kJ/h - Outlet dew point stability: ±0.1 °C [±0.18 °F] - Inlet water vapor dew point - Icon-based graphical display for easy and intuitive navigation - Periodical self-monitoring with advance warning to inform about pending maintenance work - Configurable mA output as well as separate alarm and warning relays for active ultra-low cooling stage - In a 19" rack or wall-mounting housing - Power: 230 V - Optionally: 1 standard and 2 modified Jet-Stream heat exchangers, up to 4 peristaltic pumps SR25.2, liquid particle filter to separate aerosols, liquid alarm sensor, flow meter, flow sensor, purging of the heat exchanger in the inactive ultra-low cooling stage The patented M&C ultralow cooler EC-30 is used in analytical technology to reduce the dew point of humid gases to a stable, very low level in order to prevent condensation and increased aerosol formation in the analyzer. When installing the cooler on site, the very low cooler outlet dew point means there is no need for a heated sample line with high energy consumption. By setting an extremely stable and low gas outlet dew point, water vapor cross-sensitivity and volumetric errors are avoided.
