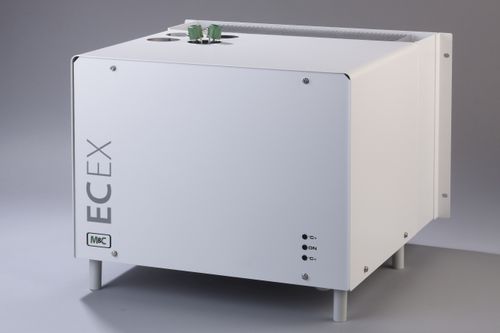

Gas cooler ECEX-1G

adjustableexplosion-proofrack

- Compressor gas cooler with 1 Jet-Stream heat exchanger made of Duran® glass - With a gas flow rate of max. 1 x 250 Nl/h - Explosion-proof version according to ATEX for zone 1 - Housing designed for up to 4 Jet-Stream heat exchangers - Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions - With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature - Ambient temperature - With status alarm contact - In a 19" rack or wall-mounting housing - Power: 230 V - Optionally: Jet-Stream heat exchangers, automatic or manual condensate removal, different gas and condensate connections The M&C gas coolers type EC are used in gas analysis applications to lower the dew point of humid gases in order to prevent condensation in the analyzer. By setting an extremely stable gas outlet dew point, water vapor cross-sensitivity and volumetric errors are avoided. Compressor gas cooler type EC‑Ex‑1G, ATEX certified version for hazardous zone 1 areas with the marking: II 2 G EX pxb db eb [ib] IIC T4 Gb, EXAM NR.: 17 ATEX E 080,IECEx BVS 18.0021, in a wall‑mount enclosure or, on request, as 19" rack housing, housing depth: 450 mm, electronically regulated to +5 °C, high and low‑temperature alarm with 1 changeover contact, Jet‑Stream heat exchangers made of Duran® glass for 1 x 250 Nl/h (max. 4 pcs.), connections: sample gas: GL 18‑6 mm, condensate: GL 25‑12 mm, power: 230 V/50‑60 Hz
