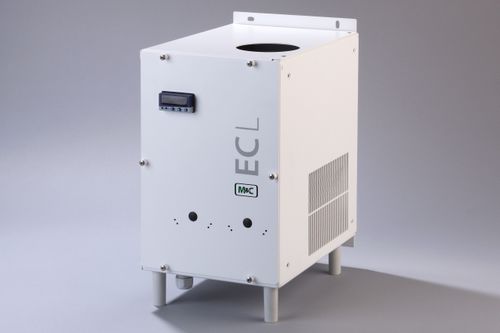

Gas cooler ECL/2
for samplesadjustablecondensation

gas cooler
gas cooler
gas cooler
gas cooler
Add to favorites
Compare this product


Characteristics

Material
gas
Applications
for samples
Other characteristics
adjustable, condensation
Maximum temperature

45 °C
(113 °F)

Description

- Compressor gas cooler for 2 Jet-Stream heat exchangers with a gas flow rate of max. 2 x 250 Nl/h or 1 x 500 Nl/h - Can be used as one or two-channel unit - Can be upgraded to a complete sample gas conditioning system - Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions - With a total cooling capacity of 144 kJ/h ambient temperature - Ambient temperature - With configurable status alarm contact - In a wall-mounting housing - Power: 115 V - Optionally: 2 Jet-Stream heat exchangers, peristaltic pumps SR25.2, different gas and condensate connections depending on heat exchanger types, pre-cooling stage(s), mounting plate, filter(s), liquid alarm sensor(s), diaphragm pump(s) The M&C gas coolers EC-L are used in gas analysis technology to lower the dew point of humid gases in order to prevent condensation in the analyzer(s). By setting an extremely stable and low gas outlet dew point, water vapor cross-sensitivity and volumetric errors are minimized. Compressor gas cooler type EC‑L/2, in a wall‑mount enclosure, prepared for two heat exchangers 250 Nl/h each, high and low temperature alarm window, as well as sample gas dew point adjustable via the integrated electronic controller, factory‑set to +5 °C, with 1 contact output, temperature sensor with digital display:, integrated evaluation for liquid alarm sensor LA1S, 1 contact output for status alarm, 1 contact output for pump control, power: 115 V/50‑60 Hz
