Mobile compressor MSP1300

centrifugalairgasoline engine

Overview

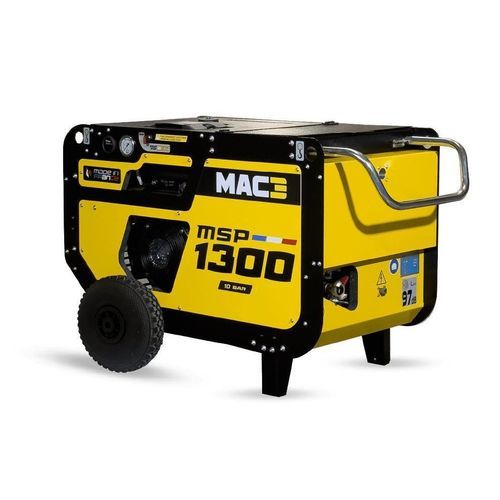

The MSP1300 line by MAC3 provides a gasoline-engine compressor delivering a nominal flow of 1300 l/min. Designed for both skid and wheeled installations, the MSP1300 is available in configurations adapted to different working pressures and noise-regulated areas.

MSP1300, a versatile compressor
The MSP1300 is the gasoline model in the MSP range, offering configurations for worksite versatility and lower-noise operation where required.

Available configurations

• 1300 l/min at 7 bar — suitable for operating MAC3 concrete breakers and other pneumatic tools.
• 1000 l/min at 15 bar — suitable for optical-fibre deployment and higher-pressure applications.
• Available as skid (for van installation) or wheeled version for on-site handling.

Ergonomics of use and maintenance

• Direct access to tank filling
• Electric start by key switch
• Air outlet and opening valve located at the rear under the hood
• Hood opening for maintenance access
• Reversible and adjustable handle
• Aftercooler connection via a simple connector

Applications

• Spraying: sandblasting, airbrushing and hydro-abrasive cleaning
• Demolition: operates MAC3 pneumatic tools up to 40 kg
• Optical-fibre deployment: via the 15 bar / 1000 l/min configuration

Options

• Winch to facilitate loading/unloading and handling
• Remote aftercooler to significantly improve produced air quality

Performance (table)
Header: MSP1300 regulated zones | MSP1300 unregulated zones
Working pressure: 7 bar | 8.5 bar | 10 bar | 15 bar — 7 bar | 8.5 bar | 10 bar | 15 bar
Pressure (psi): 100 psi | 123 psi | 145 psi | 215 psi — 100 psi | 123 psi | 145 psi | 215 psi
Air flow: 1.3 m³/min | 1.0 m³/min | 1.0 m³/min | 1.0 m³/min — 1.75 m³/min | 1.5 m³/min | 1.5 m³/min | 1.2 m³/min
Air flow (cfm): 50 cfm | 36 cfm | 36 cfm | 36 cfm — 62 cfm | 53 cfm | 53 cfm | 43 cfm
Noise level: 97 dB(A) LWA (regulated zones) | 99 dB(A) LWA (unregulated zones)
Compressor oil circuit: 4.5 L
Compressed air outlets: 1 x 3/4"

Motorization (table)
Engine: BRIGGS & STRATTON Vanguard 23 HP
Power rating (regulated zones): 13.0 kW (17.4 hp) | (unregulated zones): 17.2 kW (23 hp)
Fuel tank: 8.5 L

Dimensions and weight (table)
Models: MSP1300 SKID | MSP1300 (wheeled)
Dimensions (L*W*H): 1106*602*660 mm (SKID) | 1200*790*790 mm (wheeled)
Imperial dimensions: 43.5*23.7*26 in. (SKID) | 47.2*31.1*31.1 in. (wheeled)
Weight: 214 kg (SKID) | 219 kg (wheeled) — 472 lb (SKID) | 483 lb (wheeled)

Technical specifications

• Model / commercial name: MSP1300
• Brand: MAC3
• Engine: BRIGGS & STRATTON Vanguard 23 HP
• Power rating: 13.0 kW (regulated) / 17.2 kW (unregulated)
• Power (imperial): 17.4 hp (regulated) / 23 hp (unregulated)
• Available configurations: 1300 l/min @ 7 bar and 1000 l/min @ 15 bar
• Nominal air flow: up to 1.3 m³/min depending on configuration
• Air flow variants (m³/min): 1.3 / 1.0 / 1.75 / 1.5 / 1.2
• Air flow in cfm: 50 / 36 / 62 / 53 / 43 depending on configuration
• Working pressures available: 7 bar, 8.5 bar, 10 bar, 15 bar
• Noise level: 97 dB(A) LWA (regulated) / 99 dB(A) LWA (unregulated)
• Compressor oil capacity: 4.5 L
• Compressed air outlet: 1 x 3/4"
• Fuel tank capacity: 8.5 L
• Weight: 214 kg (skid) / 219 kg (wheeled)
• Dimensions (skid): 1106 x 602 x 660 mm
• Dimensions (wheeled): 1200 x 790 x 790 mm
• Transport/configuration: available as skid (for van positioning) or wheeled version (on-site handling)
• Options: winch, remote aftercooler

Documentation and media
Product sheet available on request via the website form.
