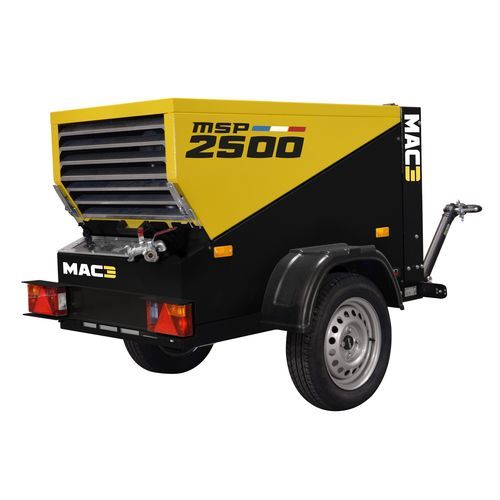

Mobile compressor MSP series

centrifugalairdiesel

Overview
The MSP series comprises compact, mobile diesel compressors delivering airflow between 2.0 and 2.9 m³/min (approx. 65–105 cfm). Models are available for regulated zones with KUBOTA D1105 Stage V engines and for unregulated areas with KUBOTA D1105. The design ensures balanced weight distribution and easy access to main components to simplify maintenance and improve on-site handling.

Engine
All units use KUBOTA D1105 engines. Stage V variants (KUBOTA D1105 Stage V / TIER 4) are offered for regions with emissions regulations. Fuel tank capacity: 40 L.

Configurations

• Standard SKID compressor with remote drain.
• SKID Premium with remote drain, fork passages on each side and liquid retention tank.
• Standard axle-mounted compressor.
• Premium axle-mounted compressor with remote drain and retention tank.
• Trailer-mounted solution combining a SKID Premium unit and a dedicated trailer.

Performance — regulated zones (summary)
MSP2000 | MSP2500 | MSP3000
Working pressure: 7 / 8.5 / 10 bar (100 / 123 / 145 psi)
Air flow (m³/min): 2.1 / 1.9 / 1.8 | 2.5 / 2.2 / 2.0 | 2.9 / 2.5 / 2.1
Air flow (cfm): 74 / 67 / 65 | 90 / 78 / 71 | 105 / 88 / 75
Noise level: ≈97–98 dB(A) LWA
Compressor oil circuit: 6.5 L
Compressed air outlets: 2 x G1/2

Performance — unregulated areas (summary)
MSP2000 | MSP2500 | MSP3000
Working pressure: 7 / 8.5 / 10 bar (100 / 123 / 145 psi)
Air flow (m³/min): 2.0 / 1.9 / 1.8 | 2.5 / 2.0 / 1.8 | 2.9 / 2.3 / 2.1
Air flow (cfm): 70 / 67 / 65 | 90 / 70 / 65 | 105 / 71 / 75
Noise level: ≈97–98 dB(A) LWA
Compressor oil circuit: 6.5 L
Compressed air outlets: 2 x G1/2

Power and fuel
Nominal power: MSP2000 ≈ 13.0 kW (17.4 hp); MSP2500 ≈ 18.1 kW (24.3 hp); MSP3000 values aligned with variants above depending on configuration.
Fuel tank: 40 L.

Dimensions and weight (examples)
SKID standard: 1550 × 760 × 970 mm — ≈458–487 kg
SKID Premium: 1550 × 760 × 890 mm — ≈465–490 kg
Standard axle / Premium axle: 2886 × 1190 × 1328 mm — ≈533–576 kg depending on model
Trailer: 2890 × 1240 × 1340 mm — ≈601–626 kg

Applications / Notes
Designed for construction, civil works, mining, agriculture, surface treatment and other sectors requiring compact, mobile compressed air. Stage V options enable compliance with emissions regulations while maintaining fuel efficiency.

Technical specifications

• Series: MSP (MSP2000 / MSP2500 / MSP3000)
• Airflow range: 2.0–2.9 m³/min (≈65–105 cfm)
• Working pressures: 7, 8.5, 10 bar (100 / 123 / 145 psi)
• Noise level: ≈97–98 dB(A) LWA
• Compressor oil circuit: 6.5 L
• Compressed air outlets: 2 x G1/2
• Engine (regulated): KUBOTA D1105 Stage V (TIER 4)
• Engine (unregulated): KUBOTA D1105
• Nominal power: 13.0 kW and 18.1 kW depending on variant
• Fuel tank: 40 L
• Available configurations: Standard SKID, SKID Premium, Standard axle, Premium axle, Trailer-mounted
