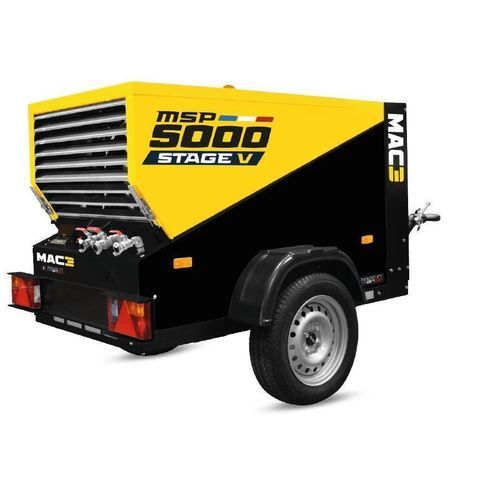

Mobile compressor MSP5000

centrifugalairdiesel

Product overview
The MSP5000 compressor line is specified by construction professionals for reliable performance and compact footprint. Models deliver nominal flows up to 5.0 m³/min and are available in configurations compliant with regulated areas (Stage V engines) and for unregulated areas. The internal layout is optimised for balanced weight distribution and improved manoeuvrability on sites, with accessible main components to simplify maintenance and reduce downtime.

Engine
All MSP5000 units are fitted with Kubota engines. Machines destined for regulated zones are equipped with KUBOTA V 1505-CR-TE5 Stage V TIER 4 engines. Unregulated-zone versions use the KUBOTA V 1505-T.

Available configurations

• Standard SKID compressor, including remote drain
• SKID Premium compressor, with remote drain, fork pockets on each side and liquid retention tank
• Standard axle compressor
• Premium axle compressor, including remote drain and liquid retention tank
• Trailer-mounted compressor combining a SKID Premium unit and an independent custom trailer

Performance (summary)
MSP5000 regulated zones / MSP5000 unregulated zones
Working pressure: 7 bar / 8.5 bar / 10 bar — (100 psi / 123 psi / 145 psi)
Air flow: 5.0 m³/min / 4.6 m³/min / 4.2 m³/min — (180 cfm / 165 cfm / 148 cfm)
Noise level: 98 dB(A) LWA
Compressor oil circuit: 4.5 L
Compressed air outlets: 1 x 1" + 2 x 3/4"

Motorization (summary)
Regulated zones engine: KUBOTA V 1505-CR-TE5 Stage V TIER 4
Unregulated zones engine: KUBOTA V 1505-T
Power rating: 31.2 kW (41.8 hp)
Fuel tank: 60 L

Dimensions and weight (summary)
Regulated zones
Standard SKID dimensions: 1820 x 904 x 1205 mm (71.6 x 35.6 x 47.4 in.) — weight: 672 kg (1482 lb)
SKID Premium dimensions: 1820 x 904 x 1125 mm (71.6 x 35.6 x 44.3 in.) — weight: 670 kg (1477 lb)
Standard axle dimensions: 2923 x 1326 x 1400 mm (115 x 52 x 55 in.) — weight: 736 kg (1623 lb)
Premium axle dimensions: 2923 x 1326 x 1400 mm (115 x 52 x 55 in.) — weight: 748 kg (1649 lb)
Trailer dimensions: 2930 x 1450 x 1625 mm (115.3 x 55.1 x 64 in.) — weight: 980 kg (2161 lb)

Unregulated zones
STANDARD SKID dimensions: 1820 x 904 x 1205 mm (71.6 x 35.6 x 47.4 in.) — weight: 700 kg (1543 lb)
STANDARD AXLE dimensions: 2923 x 1326 x 1400 mm (115 x 52 x 55 in.) — weight: 750 kg (1653 lb)

Fields of application

• Construction
• Surface treatment
• Mines and quarries
• Civil engineering, utilities and infrastructure (VRD)
• Other construction-professional applications

Technical specifications

• Model name: MSP5000
• Type: Diesel mobile compressor
• Nominal air flow (examples): 5.0 m³/min (180 cfm), 4.6 m³/min (165 cfm), 4.2 m³/min (148 cfm)
• Working pressures available: 7 bar (100 psi), 8.5 bar (123 psi), 10 bar (145 psi)
• Noise level: 98 dB(A) LWA
• Compressor oil capacity: 4.5 L
• Compressed air outlets: 1 x 1" + 2 x 3/4"
• Regulated engine (Stage V): KUBOTA V 1505-CR-TE5 Stage V TIER 4
• Unregulated engine: KUBOTA V 1505-T
• Power rating: 31.2 kW (41.8 hp)
• Fuel tank capacity: 60 L
• Available configurations: Standard SKID, SKID Premium, Standard axle, Premium axle, Trailer-mounted
• Dimensions and weights vary by configuration (see dimensions block above)
