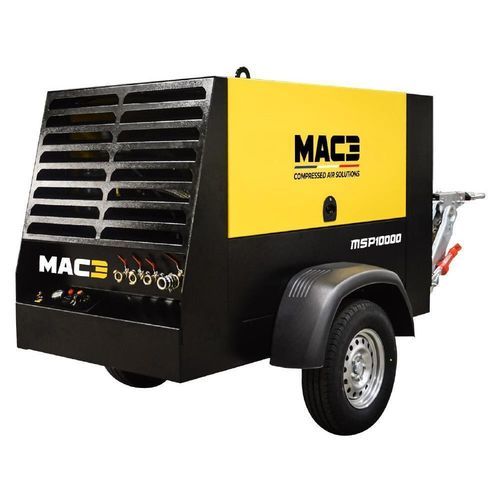

Mobile compressor MSP series

screwairdiesel

Overview
The MSP7000 and MSP10000 compressors are mobile diesel compressors designed for export to non-regulated areas. Compact and adaptable, they feature an optimized internal layout and balanced weight distribution for improved maneuverability and easier maintenance.

Key features

• Most compact machines in the MSP range
• Balanced axle weight distribution for better on-site maneuverability
• Excellent accessibility to main compressor components to simplify maintenance and reduce downtime
• Equipped with Kubota engines
• Available in multiple configurations to meet construction site requirements

Configurations

• Standard SKID compressor (including remote drain)
• Braked axle (trailer) compressor

Performance
Models: MSP7000 and MSP10000 for non-regulated areas (export)
Working pressures: 7 bar / 10 bar / 12 bar (both models)
Pressure (psi): 100 psi / 145 psi / 170 psi
Air flow (m3/min): MSP7000 — 7.6 / 7.0 / 6.3; MSP10000 — 11.0 / 10.0 / 9.0
Air flow (cfm): MSP7000 — 268 / 250 / 225; MSP10000 — 390 / 350 / 320
Noise level: 99 dB(A) LWA (all versions)
Compressor oil circuit capacity: 41 L
Compressed air outlets: 1 x 1'1/2 + 3 x 3/4

Motorization
Engine (MSP7000): KUBOTA V3300-T — 53.9 kW (72.3 hp)
Engine (MSP10000): KUBOTA V3800DI-T — 74.0 kW (99.2 hp)
Fuel tank capacity: 170 L

Dimensions and weight
MSP7000 SKID: 2210 x 1130 x 1423 mm — Weight 1334 kg (2941 lb)
MSP7000 axle: 4200 x 1650 x 1865 mm — Weight 1399 kg (3084 lb)
MSP10000 SKID: 2210 x 1130 x 1423 mm — Weight 1492 kg (3289 lb)
MSP10000 axle: 4200 x 1650 x 1865 mm — Weight 1557 kg (3433 lb)

Applications

• Construction sites
• Surface treatment
• Mines and quarries
• Civil engineering, networks and infrastructures (VRD)

Technical specifications

• Series: MSP
• Models: MSP7000 and MSP10000 (export / non-regulated areas)
• Working pressures available: 7 bar, 10 bar, 12 bar
• Air flows (MSP7000): 7.6 / 7.0 / 6.3 m3/min (268 / 250 / 225 cfm)
• Air flows (MSP10000): 11.0 / 10.0 / 9.0 m3/min (390 / 350 / 320 cfm)
• Compressor oil circuit: 41 L
• Fuel tank: 170 L
• Compressed air outlets: 1 x 1'1/2 + 3 x 3/4
• Noise level: 99 dB(A) LWA
• Dimensions SKID (mm): 2210 x 1130 x 1423; axle (mm): 4200 x 1650 x 1865
• Weights (kg): MSP7000 SKID 1334 / axle 1399; MSP10000 SKID 1492 / axle 1557
