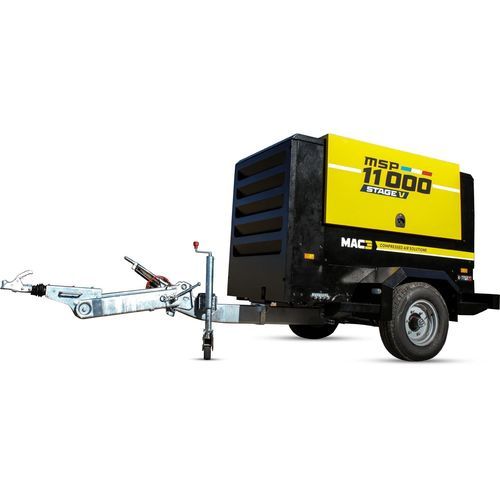

Mobile compressor MSP11000

centrifugalairdiesel

Overview
The MSP11000 STAGE V is a mobile diesel compressor delivering up to 10.5 m³/min, designed for regulated sites requiring Stage V / TIER 4 compliance. Configurable for SKID or braked-axle installations, it targets construction and civil engineering applications.

Key features

• Compact MSP series layout with optimized internal component placement for improved site maneuverability.
• Balanced axle weight distribution to facilitate towing and handling on uneven terrain.
• Easy access to primary compressor components to simplify maintenance and reduce downtime.
• Designed for regulated zones with Stage V / TIER 4 compliance options.

Engine
The MSP11000 STAGE V is powered by KUBOTA V3800 engines. Kubota components and MAC3 integration ensure proven performance and serviceability on construction sites.

Documentation
Product documentation and technical datasheets available for the MSP11000.

Configurations

• Standard SKID compressor, including remote drain.
• Braked axle compressor.

Fields of application

• Surface treatment
• Mines and quarries
• Civil engineering – networks – infrastructures (VRD)

Performance
MSP11000 STAGE V
Working pressure | 7 bar | 8.5 bar | 10 bar | 12 bar | 14 bar
Working pressure (psi) | 100 psi | 125 psi | 145 psi | 170 psi | 200 psi
Air flow | 10.5 m³/min | 10.5 m³/min | 10.5 m³/min | 10.5 m³/min | 9.7 m³/min
Air flow (cfm) | 370 cfm | 370 cfm | 370 cfm | 370 cfm | 342 cfm
Noise level | 99 dB(A) LWA
Compressor oil circuit | 41 L
Compressed air outlets | 1 x 1/2 + 3 x 3/4

Motorization
MSP11000 STAGE V
Engine | KUBOTA V3800
Power rating | 96.4 kW (≈129.27 hp)
Fuel tank | 170 L

Dimensions and weight
MSP11000 STAGE V
Configuration | Standard SKID | Braked axle
Dimensions | 2252×1218×1640 mm (89 x 48 x 63 in.) | 4350×1788×1904 mm (171 x 70 x 75 in.)
Weight | 1900 kg (4189 lb) | 2300 kg (5071 lb)

Regulation note
Stage V (EU) and TIER 4 (US) define emissions limits for non-road diesel engines. Compliant units use aftertreatment technologies such as Diesel Particulate Filters (DPF), Selective Catalytic Reduction (SCR) and Exhaust Gas Recirculation (EGR) to reduce particulates and NOx.

Technical specifications

• Model: MSP11000 STAGE V
• Brand: MAC3
• Working pressures: 7, 8.5, 10, 12, 14 bar (100 / 125 / 145 / 170 / 200 psi)
• Air flow: up to 10.5 m³/min (370 cfm); 9.7 m³/min (342 cfm) at 14 bar
• Noise level: 99 dB(A) LWA
• Compressor oil circuit: 41 L
• Compressed air outlets: 1 x 1/2 + 3 x 3/4
• Engine: KUBOTA V3800
• Power rating: 96.4 kW (≈129.27 hp)
• Fuel tank: 170 L
• Configurations: Standard SKID (2252×1218×1640 mm, 1900 kg) or Braked axle (4350×1788×1904 mm, 2300 kg)
• Intended use: construction, surface treatment, mines/quarries, civil engineering (VRD)
