Mobile compressor MSP12000centrifugalairdiesel
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- diesel
- Portability
- mobile
- Lubrication
- oil-lubricated
- Application domain
- industrial, for heavy-duty applications
- Applications
- construction
- Other characteristics
- compact, heavy-duty, skid-mounted, Stage V
- Tank volume
Min.: 41 l
(10.8 gal)Max.: 170 l
(44.9 gal)- Pressure
Min.: 7 bar
(101.53 psi)Max.: 10 bar
(145.04 psi)- Flow
Min.: 660 m³/h
(23,307.68 ft³/h)Max.: 720 m³/h
(25,426.56 ft³/h)- Power
96.4 kW
(131.07 hp)- Length
Min.: 2,252 mm
(88.66 in)Max.: 4,350 mm
(171.26 in)- Width
Min.: 1,218 mm
(47.95 in)Max.: 1,788 mm
(70.39 in)- Height
Min.: 1,640 mm
(64.57 in)Max.: 1,904 mm
(74.96 in)- Weight
Min.: 1,900 kg
(4,188.8 lb)Max.: 2,300 kg
(5,070.6 lb)- Noise level
99 dB
Description
Product overview

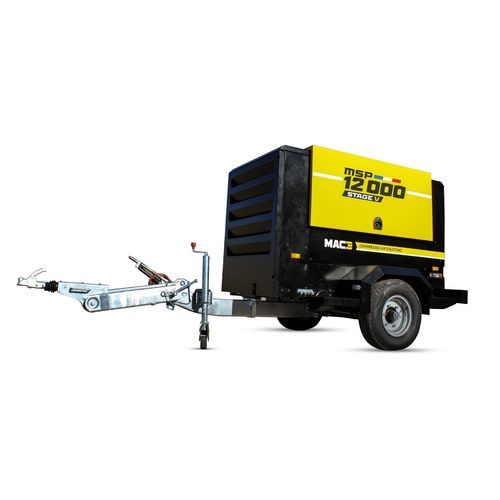

The MSP12000 Stage V mobile diesel compressor delivers regulated-zone emissions compliance and site-oriented performance. Designed for construction and quarry use, the 12 m³/min model is compact, adaptable and provides easy access to main components to simplify maintenance and reduce downtime.
Engine
Equipped with Kubota V3800 engine to ensure sustainable on-site power and reliable compression performance adapted to heavy-duty applications.
Configurations
Fields of application
PERFORMANCE
MSP 12000
Working pressure: 7 bar | 8.5 bar | 10 bar
100 psi | 125 psi | 145 psi
Air flow: 12 m³/min | 12 m³/min | 11 m³/min
425 cfm | 425 cfm | 390 cfm
Noise level: 99 dB(A) LWA
Compressor oil circuit: 41 L
Compressed air outlets: 1 x 1/2" + 3 x 3/4"
MOTORIZATION
MSP 12000
Engine: KUBOTA V3800
Power rating: 96.4 kW (129.2745 hp)
Fuel tank: 170 L
DIMENSIONS AND WEIGHT
MSP 12000 — Standard SKID vs Braked axle
Dimensions (Standard SKID): 2252 x 1218 x 1640 mm — 89 x 48 x 63 in.
Dimensions (Braked axle): 4350 x 1788 x 1904 mm — 171 x 70 x 76 in.
Weight (Standard SKID): 1900 kg — 4189 lb
Weight (Braked axle): 2300 kg — 5071 lb
Regulated zones note
Stage V (EU) and TIER 4 (US) regulate emissions from non-road diesel engines. Compliant equipment integrates systems such as DPF, SCR and EGR to reduce exhaust emissions.
Technical specifications
The MSP12000 Stage V mobile diesel compressor delivers regulated-zone emissions compliance and site-oriented performance. Designed for construction and quarry use, the 12 m³/min model is compact, adaptable and provides easy access to main components to simplify maintenance and reduce downtime.
Engine
Equipped with Kubota V3800 engine to ensure sustainable on-site power and reliable compression performance adapted to heavy-duty applications.
Configurations
- Standard SKID, including remote drain.
- Braked axle.
Fields of application
- Surface treatment
- Mines and quarries
- Civil engineering, networks and infrastructures
PERFORMANCE
MSP 12000
Working pressure: 7 bar | 8.5 bar | 10 bar
100 psi | 125 psi | 145 psi
Air flow: 12 m³/min | 12 m³/min | 11 m³/min
425 cfm | 425 cfm | 390 cfm
Noise level: 99 dB(A) LWA
Compressor oil circuit: 41 L
Compressed air outlets: 1 x 1/2" + 3 x 3/4"
MOTORIZATION
MSP 12000
Engine: KUBOTA V3800
Power rating: 96.4 kW (129.2745 hp)
Fuel tank: 170 L
DIMENSIONS AND WEIGHT
MSP 12000 — Standard SKID vs Braked axle
Dimensions (Standard SKID): 2252 x 1218 x 1640 mm — 89 x 48 x 63 in.
Dimensions (Braked axle): 4350 x 1788 x 1904 mm — 171 x 70 x 76 in.
Weight (Standard SKID): 1900 kg — 4189 lb
Weight (Braked axle): 2300 kg — 5071 lb
Regulated zones note
Stage V (EU) and TIER 4 (US) regulate emissions from non-road diesel engines. Compliant equipment integrates systems such as DPF, SCR and EGR to reduce exhaust emissions.
Technical specifications
- Model: MSP12000
- Type: Mobile diesel compressor (Stage V)
- Working pressures available: 7 bar, 8.5 bar, 10 bar (100 / 125 / 145 psi)
- Air flow: up to 12 m³/min (425 cfm); at highest pressure 11 m³/min (390 cfm)
- Noise level: 99 dB(A) LWA
- Compressor oil circuit capacity: 41 L
- Compressed air outlets: 1 x 1/2" + 3 x 3/4"
- Engine: Kubota V3800
- Engine power rating: 96.4 kW (129.2745 hp)
- Fuel tank capacity: 170 L
- Configurations: Standard SKID (remote drain) or Braked axle
- Dimensions (Standard SKID): 2252 x 1218 x 1640 mm (89 x 48 x 63 in.)
- Dimensions (Braked axle): 4350 x 1788 x 1904 mm (171 x 70 x 76 in.)
- Weight (Standard SKID): 1900 kg (4189 lb)
- Weight (Braked axle): 2300 kg (5071 lb)
