Screw compressor MSB series

airelectricstationary

Product overview
The MSB industrial compressors are belt-driven machines available from 2.2 to 15 kW and offered in three primary configurations: on frame, on tank or compact (compressor + tank + dryer). They are designed for industrial applications requiring flexible installation and straightforward maintenance.

Highlights

• Flexible
  • Multiple configurations to meet specific site and process needs: single-frame unit, tank-mounted unit, or turnkey solution with tank-mounted dryer and filtration.
• Performances
  • Rated for operation up to 43°C ambient temperature
  • Renowned, quality components
  • Low maintenance cost
  • Robust design for extended service life
• Ergonomics
  • Quick installation and start-up
  • Simple operation
  • Easy access for servicing
  • Electronic controller enabling preventive maintenance

Equipment

• Electric motor WEG — IP55, insulation class F
• Air-end TANROTOR or ROTORCOMP
• Electronic controller SMARTRONIC LITE
  • Alarm and preventive maintenance
  • Remote control
  • Master/Slave operation via serial connection
• Starter and protections SCHNEIDER ELECTRIC
  • Phase monitor relay
  • Integrated short-circuit protection
• Pulley–belt coupling
  • V-belt drive
  • Easy tensioning and alignment
  • Belt protection guard

Fields of application

• Automotive industry
• Woodworking
• Metallurgy
• Engineering integrators
• Crafts and workshops
• Agriculture
• Surface treatment

Configurations

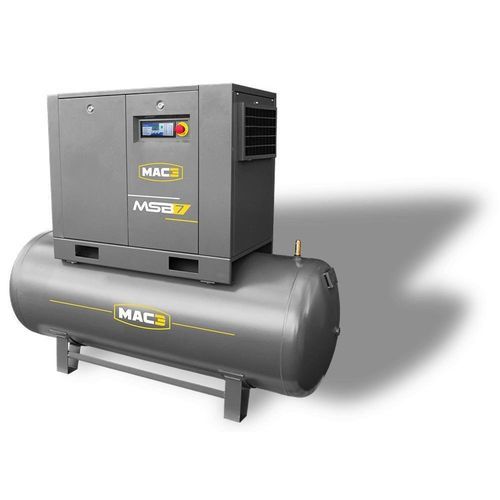

• MSB ON FRAME
• MSB ON TANK
• MSB COMPACT

Performance table — MSB ON FRAME
MODEL | kW | Hp | AIR FLOW 7.5 bar | AIR FLOW 10 bar | AIR FLOW 13 bar | AIR OUTLET | DIMENSIONS (mm L x W x H) | WEIGHT (kg)
MSB 2 | 2.2 | 3 | 0.38 | - | - | 1/2" | 850 x 550 x 862 | 157
MSB 3 | 3 | 4 | 0.41 | 0.36 | - | 1/2" | 850 x 550 x 862 | 159
MSB 4 | 4 | 5.5 | 0.56 | 0.46 | 0.35 | 1/2" | 850 x 550 x 862 | 175
MSB 5 | 5.5 | 7.5 | 0.80 | 0.65 | 0.53 | 1/2" | 1000 x 550 x 835 | 197
MSB 7 | 7.5 | 10 | 1.15 | 0.95 | 0.77 | 3/4" | 1000 x 550 x 835 | 205
MSB 11 | 11 | 15 | 1.70 | 1.40 | 1.16 | 3/4" | 1219 x 650 x 915 | 274
MSB 15 | 15 | 20 | 2.25 | 1.96 | 1.51 | 3/4" | 1219 x 650 x 915 | 305

Performance table — MSB ON TANK
MODEL | kW | Hp | AIR FLOW 7.5 bar | AIR FLOW 10 bar | AIR FLOW 13 bar | TANK (L) | AIR OUTLET | DIMENSIONS (mm L x W x H) | WEIGHT (kg)
MSB 2 | 2.2 | 3 | 0.38 | - | - | 200 | 1/2" | 1469 x 550 x 1337 | 239
MSB 3 | 3 | 4 | 0.41 | 0.36 | - | 200 | 1/2" | 1469 x 550 x 1337 | 241
MSB 4 | 4 | 5.5 | 0.56 | 0.46 | 0.35 | 200 | 1/2" | 1469 x 550 x 1337 | 257
MSB 5 | 5.5 | 7.5 | 0.80 | 0.65 | 0.53 | 200 | 1/2" | 1469 x 550 x 1337 | 279
MSB 7 | 7.5 | 10 | 1.15 | 0.95 | 0.77 | 500 | 3/4" | 1886 x 642 x 1500 | 357
MSB 11 | 11 | 15 | 1.70 | 1.40 | 1.16 | 500 | 3/4" | 1886 x 642 x 1573 | 426
MSB 15 | 15 | 20 | 2.25 | 1.96 | 1.51 | 500 | 3/4" | 1886 x 642 x 1573 | 457

Performance table — MSB COMPACT
MODEL | kW | Hp | AIR FLOW 7.5 bar | AIR FLOW 10 bar | AIR FLOW 13 bar | TANK (L) | AIR OUTLET | DIMENSIONS (mm L x W x H) | WEIGHT (kg)
MSB 2 | 2.2 | 3 | 0.38 | - | - | 250 | 1/2" | 1842 x 550 x 1337 | 288
MSB 3 | 3 | 4 | 0.41 | 0.36 | - | 250 | 1/2" | 1842 x 550 x 1337 | 290
MSB 4 | 4 | 5.5 | 0.56 | 0.46 | 0.35 | 250 | 1/2" | 1842 x 550 x 1337 | 306
MSB 5 | 5.5 | 7.5 | 0.80 | 0.65 | 0.53 | 250 | 1/2" | 1843 x 550 x 1310 | 328
MSB 7 | 7.5 | 10 | 1.15 | 0.95 | 0.77 | 500 | 3/4" | 1886 x 642 x 1612 | 408
MSB 11 | 11 | 15 | 1.70 | 1.40 | 1.16 | 500 | 3/4" | 1882 x 650 x 1605 | 477
MSB 15 | 15 | 20 | 2.25 | 1.96 | 1.51 | 500 | 3/4" | 1882 x 650 x 1605 | 510

Technical specifications

• Commercial designation: MSB
• Power range: 2.2 kW to 15 kW
• Available models: MSB 2, MSB 3, MSB 4, MSB 5, MSB 7, MSB 11, MSB 15
• Configurations: on frame, on tank, compact (compressor + tank + dryer)
• Electric motor: WEG, IP55, insulation class F
• Air-ends: TANROTOR or ROTORCOMP
• Controller: SMARTRONIC LITE (alarm, preventive maintenance, remote control, master/slave)
• Starter/protections: SCHNEIDER ELECTRIC (phase monitor relay, integrated short-circuit protection)
• Drive: V-belt pulley–belt coupling with easy tensioning/alignment and belt guard
• Operating ambient temperature up to 43°C
• Refer to performance tables above for air flow, outlets, dimensions and weights per model
