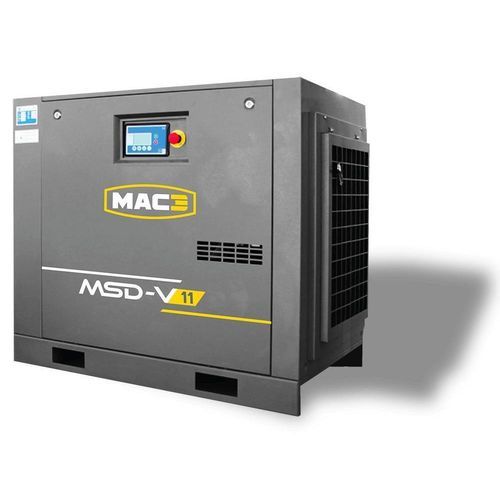

Screw compressor MSD-V series

airelectricstationary

Overview
The MSD-V range of variable-speed industrial compressors covers 5 to 15 kW and is offered in three configurations: on frame, on tank or as a compact package (compressor + tank + dryer). The range is designed for industrial applications requiring stable system pressure, flexible installation and energy savings.

Highlights

• Flexible
  • Multiple configurations to meet specific site requirements: compressor on frame, compressor mounted on tank, or complete turnkey package with dryer and filtration on tank
• Compact
• Performance
  • Up to 35% energy savings with variable-speed operation
  • Stabilized pressure on the network
  • Smooth starting and elimination of unload phases
  • Renowned component manufacturers to ensure reliable operation and reduced maintenance
• Economical

Equipment

• Electric motor WEG — IP55, class F insulation
• AIR-END TAMROTOR or ROTORCOMP
• Controller SMARTRONIC electronic controller with alarm and preventive maintenance features, remote control, Master/Slave operation via serial link, weekly timer, MODBUS protocol
• Schneider Electric components: phase monitor relay, integrated short-circuit breaker
• Coupling: 1:1 direct-drive coupling — flexible coupling or bell housing protection
• Cooling fan: EBM-PAPST air cooling fan
• Inverter: DANFOSS inverter

Configurations

• MSD-V ON FRAME
• MSD-V ON TANK
• MSD-V COMPACT (turnkey compact solution: tank, refrigeration dryer, includes 2 in-line filters)

Fields of application

• Crafts
• Surface treatment
• Mines and quarries
• Automotive industry
• Woodworking
• Power generation
• Metallurgy
• Major industries

MSD-V ON FRAME — Performance table (air flow in m3/min)
MODEL | kW | Hp | AIR FLOW RANGE M3/MIN (7,5 bar / 10 bar / 13 bar) | AIR OUTLET | DIMENSIONS (L x W x H) mm | WEIGHT (kg)
MSD-V 5 | 5.5 kW | 7.5 Hp | 0.38 - 1.03 / 0.37 - 0.83 / 0.36 - 0.64 | 1/2" | 1000 x 650 x 963 | 235
MSD-V 7 | 7.5 kW | 10 Hp | 0.40 - 1.40 / 0.43 - 1.20 / 0.43 - 0.95 | 1/2" | 1000 x 650 x 963 | 260
MSD-V 11 | 11 kW | 15 Hp | 0.59 - 1.98 / 0.55 - 1.67 / 0.66 - 1.33 | 3/4" | 1201 x 730 x 1050 | 305
MSD-V 15 | 15 kW | 20 Hp | 0.76 - 2.25 / 0.72 - 2.15 / 0.90 - 1.80 | 3/4" | 1201 x 730 x 1050 | 345

MSD-V ON TANK — Performance & tank options
MODEL | kW | Hp | AIR FLOW RANGE M3/MIN (7,5 bar / 10 bar / 13 bar) | TANK (L) | AIR OUTLET | DIMENSIONS (L x W x H) mm | WEIGHT (kg)
MSD-V. 5 | 5.5 kW | 7.5 Hp | 0.38 - 1.03 / 0.37 - 0.83 / 0.36 - 0.64 | 200 L | 1/2" | 1469 x 650 x 1438 | 316
MSD-V. 7 | 7.5 kW | 10 Hp | 0.40 - 1.40 / 0.43 - 1.20 / 0.43 - 0.95 | 200 L | 1/2" | 1469 x 650 x 1438 | 342
MSD-V. 11 | 11 kW | 15 Hp | 0.59 - 1.98 / 0.55 - 1.67 / 0.66 - 1.33 | 500 L | 3/4" | 1910 x 730 x 1708 | 457
MSD-V. 15 | 15 kW | 20 Hp | 0.76 - 2.65 / 0.72 - 2.15 / 0.90 - 1.80 | 500 L | 3/4" | 1910 x 730 x 1708 | 497

MSD-V COMPACT
Turnkey package: compact solution on tank with refrigeration dryer included; includes 2 in-line filters.
MODEL | kW | Hp | FLOW RANGE L3/MIN (7,5 bar / 10 bar / 13 bar) | TANK (L) | AIR OUTLET | DIMENSIONS (mm) | WEIGHT (kg)
MSD-V 5 | 5.5 kW | 7.5 Hp | 0.38 - 1.03 / 0.37 - 0.83 / 0.36 - 0.64 | 250 L | 1/2" | 1860 x 650 x 1438 | 365
MSD-V 7 | 7.5 kW | 10 Hp | 0.40 - 1.40 / 0.43 - 1.20 / 0.43 - 0.95 | 250 L | 1/2" | 1860 x 650 x 1438 | 410
MSD-V 11 | 11 kW | 15 Hp | 0.59 - 1.98 / 0.55 - 1.67 / 0.66 - 1.33 | 500 L | 3/4" | 1882 x 730 x 1708 | 508
MSD-V 15 | 15 kW | 20 Hp | 0.76 - 2.65 / 0.72 - 2.15 / 0.90 - 1.80 | 500 L | 3/4" | 1882 x 730 x 1708 | 550

Characteristics / technical specifications

• Series: MSD-V
• Power range: 5 to 15 kW
• Configurations: on frame, on tank, compact (compressor + tank + dryer)
• Energy savings: up to 35% with variable-speed control
• Motor: WEG, IP55, class F insulation
• Air-end: TAMROTOR or ROTORCOMP
• Controller: SMARTRONIC (alarms, preventive maintenance, remote control, Master/Slave, weekly timer, MODBUS)
• Electrical components: SCHNEIDER ELECTRIC (phase monitor relay, integrated short-circuit breaker)
• Coupling: direct-drive 1:1, flexible coupling, bell housing protection
• Cooling: EBM-PAPST air cooling fan
• Inverter: DANFOSS
• Compact package includes refrigeration dryer and two in-line filters
