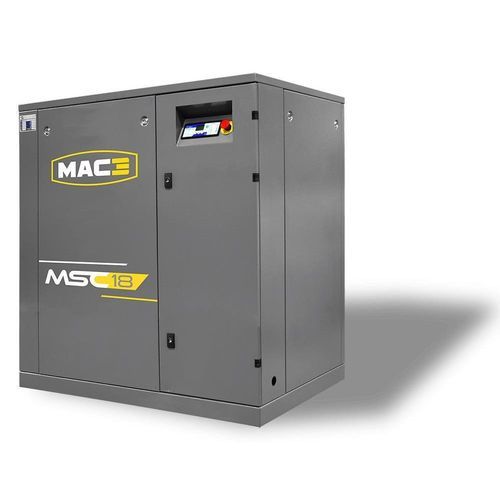

Screw compressor MSC series

airelectrically-poweredstationary

Product overview
Equipped with renowned components, the MSC series belt-driven industrial compressors cover a power range from 15 to 160 kW. Designed for continuous industrial operation, they offer modular equipment options and easy access for maintenance.

Highlights

• Robust design
• High efficiency
• Compact footprint
• Low operating cost

Key features

• Performance
  • Rated for ambient temperatures up to 43°C
  • Renowned quality components
  • Low maintenance costs
  • Durable design for extended service life
• Ergonomics
  • Quick start-up and commissioning
  • Intuitive operation
  • Accessible layout for easy servicing
  • Electronic controller for monitoring
  • Preventive maintenance support

Equipment

• Electric motor: WEG — IP55, class F insulation
• Air-end: TAMROTOR or ROTORCOMP
• Electronic controller: SMARTRONIC LITE – SMARTRONIC
  • Alarm and preventive maintenance
  • Remote control
  • Master/Slave operation via serial link
• Starter and protections: SCHNEIDER ELECTRIC
  • Phase monitoring relay
  • Integrated short-circuit protection
• Pulley-belt coupling:
  • V-belt drive
  • Easy tensioning and alignment
  • Belt protection guard
• Cooling fan: EBM-PAPST air cooling fan

Performance table (selected models)
MODEL | kW | Hp | AIR FLOW 7.5 bar (m3/min) | AIR FLOW 10 bar (m3/min) | AIR FLOW 13 bar (m3/min) | AIR OUTLET | DIMENSIONS (mm) | WEIGHT (kg)
MSC 15 | 15 | 20 Hp | 2,7 | 2,3 | 1,9 | 1" | 1275 x 850 x 1465 | 420
MSC 18 | 18,5 | 25 Hp | 3,3 | 2,8 | 2,4 | 1" | 1275 x 850 x 1465 | 450
MSC 22 | 22 | 30 Hp | 3,8 | 3,5 | 3,0 | 1" | 1275 x 850 x 1465 | 450
MSC 30 | 30 | 40 Hp | 4,6 | 4,0 | 3,6 | 1 1/4" | 1575 x 1030 x 1750 | 698
MSC 30P | 30 | 40 Hp | 5,2 | 4,3 | 3,7 | 1 1/4" | 1575 x 1030 x 1750 | 710
MSC 37 | 37 | 50 Hp | 6,4 | 5,4 | 4,3 | 1 1/4" | 1575 x 1030 x 1750 | 742
MSC 45 | 45 | 60 Hp | 7,2 | 6,4 | 5,4 | 1 1/4" | 1575 x 1030 x 1750 | 876
MSC 55 | 55 | 75 Hp | 9,6 | 8,5 | 6,6 | 1 1/2" | 2000 x 1200 x 1810 | 1460
MSC 75 | 75 | 100 Hp | 12,4 | 10,5 | 8,7 | 1 1/2" | 2000 x 1200 x 1810 | 1690

Technical specifications

• Commercial designation: MSC series
• Power range: 15 to 160 kW
• Drive type: belt-driven (V-belt pulley-belt coupling)
• Electric motor: WEG — IP55, class F insulation
• Air-ends: TAMROTOR or ROTORCOMP
• Controller: SMARTRONIC LITE / SMARTRONIC — alarm, preventive maintenance, remote control, Master/Slave via serial
• Starters & protections: SCHNEIDER ELECTRIC (phase monitor relay, integrated short-circuit protection)
• Cooling: EBM-PAPST air cooling fan
• Operating ambient temperature up to 43°C
• Typical air outlet sizes: 1", 1 1/4", 1 1/2" depending on model
• Dimensions and weights vary by model (see performance table for selected models)
