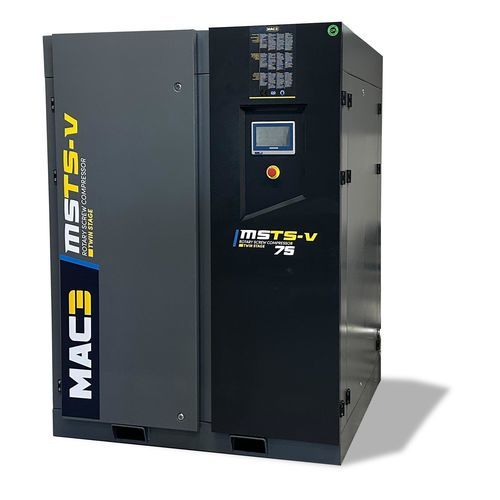

Screw compressor MSTS-V series

airelectricstationary

Overview
MAC3's MSTS-V 22–75 kW lubricated two-stage screw compressor series combines bi-stage compression and IE5 permanent-magnet motors to deliver improved efficiency, wide flow range and reliable operation for industrial applications.

Key features

• Power range: 22–75 kW
• Operating pressure: 7.5–10 bar
• Maximum air flow: up to 16.01 m³/min (model dependent)
• Two-stage (bi-stage) screw compression: ~+10% efficiency and flow from optimized dual-stage design

Advantages

• 1. Energy efficiency
  • IE5-class permanent-magnet motor (IPM) for high-efficiency drive
  • Advanced cooling system for stable operation up to 45°C ambient
• 2. Two-stage compression
  • Oil-injected interstage cooling for near-isothermal behavior
  • Lower internal losses for extended service life
• 3. Intuitive control
  • Smartronic Pro touchscreen interface for simplified operation
  • Modbus TCP connectivity for multi-compressor control (up to 4 units)
• 4. Reduced maintenance
  • Extended service intervals up to 8,000 hours with synthetic lubricant
  • Optional extended warranty: 5 years or 40,000 hours (conditions apply)

Designed with industry in mind

• High-efficiency separation system: particle filtration down to <3 mg/m³ for improved air quality
• Variable-speed ventilation (VSD): energy savings and reduced noise
• Compact footprint: space-saving layout and easy installation

Fields of application

• Heavy industry, automotive, power generation, metallurgy
• Construction, woodworking, surface treatment, mining and quarries
• Food, electronics, medical–pharmaceutical and other industrial processes

Performance (table)
MODEL | kW | HP | FLOW RANGE at 7.5 bar (m3/min) | 8.5 bar (m3/min) | 10 bar (m3/min) | AIR OUTLET BSP | DIMENSIONS (L x W x H) mm | WEIGHT Kg
MSTS-V 22 | 22 | 30 | 1,03 – 4,35 | 1,04 – 4,17 | 1,03 – 3,76 | 1 1/4" | 1095 x 955 x 1580 | 750
MSTS-V 30 | 30 | 40 | 1,64 – 6,36 | 1,62 – 5,91 | 1,59 – 5,41 | 1 1/4" | 1095 x 955 x 1580 | 875
MSTS-V 37 | 37 | 50 | 1,79 – 7,76 | 1,79 – 7,27 | 1,77 – 6,52 | 1 1/2" | 1250 x 1195 x 1860 | 1220
MSTS-V 45 | 45 | 60 | 2,33 – 9,30 | 2,31 – 8,73 | 2,30 – 8,01 | 1 1/2" | 1250 x 1195 x 1860 | 1400
MSTS-V 55 | 55 | 75 | 2,62 – 11,60 | 2,56 – 10,85 | 2,55 – 9,54 | 2" | 1450 x 1400 x 1965 | 1620
MSTS-V 75 | 75 | 100 | 3,58 – 16,01 | 3,63 – 15,27 | 3,55 – 13,22 | 2" | 1450 x 1400 x 1965 | 1850

Characteristics / Technical specifications

• Series name: MSTS-V
• Power range: 22–75 kW
• Operating pressure range: 7.5–10 bar
• Maximum air flow: up to 16.01 m³/min (model dependent)
• Two-stage screw compression with oil-injected interstage cooling
• Performance gain: approx. +10% efficiency and flow from dual-stage design
• Motor: IE5-class permanent-magnet motor (IPM)
• Cooling: advanced cooling enabling operation up to 45°C ambient
• Control: Smartronic Pro touchscreen; Modbus TCP (parallel control up to 4 units)
• Maintenance: extended intervals up to 8,000 hours with synthetic lubricant
• Warranty: optional extended 5 years or 40,000 hours (conditions apply)
• Air quality: high-efficiency separation <3 mg/m³
• Ventilation: variable-speed ventilation (VSD)
• Compact design for simplified installation
• Model-specific dimensions and weights: see performance table
