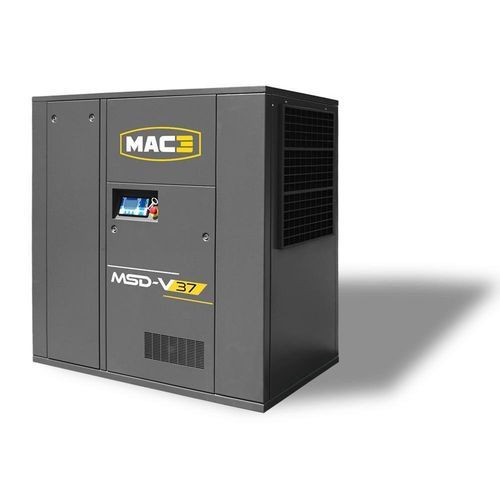

Screw compressor MSD-V series

airelectrically-poweredstationary

Overview
MSD-V series variable-speed industrial compressors, available from 18.5 to 315 kW. Designed for continuous industrial use, the range combines a direct 1:1 drive, proven air-end technology and advanced electronic control to optimize energy consumption and reduce maintenance needs.

Highlights

• Optimal specific power
• Operates up to 43°C ambient
• Direct-drive efficiency
• Low maintenance cost
• Up to 35% energy savings with variable-speed control
• Elimination of unload phases
• Engineered for long service life

Ergonomics & Maintenance

• Quick start-up
• Simple operation and clear controls
• Easy access for servicing
• Electronic controller enabling preventive maintenance

Equipment

• Electric motor WEG
  • IP55, insulation class F
• TAMROTOR series ENDURO air-end
• Controller SMARTRONIC / SMARTRONIC PLUS
  • Alarm and preventive maintenance functions
  • Remote control
  • Master/Slave operation via serial link
  • Weekly timer
  • MODBUS protocol
• SCHNEIDER ELECTRIC components
  • Integrated short-circuit protection
• 1:1 direct-drive coupling
  • Flexible coupling
  • Bell housing protection
• EBM-PAPST cooling fan
• DANFOSS inverter

Performance (excerpt)
MODEL | kW | Hp | AIR FLOW 7.5 bar (m3/min) | AIR FLOW 10 bar (m3/min) | AIR FLOW 13 bar (m3/min) | AIR OUTLET | DIMENSIONS (mm) | WEIGHT (kg)
MSD-V 18 | 18.5 | 25 | 0.8 - 3.0 | 0.7 - 2.6 | 0.7 - 2.1 | 1" | 1275 x 850 x 1465 | 465
MSD-V 22 | 22 | 30 | 1.3 - 4.2 | 1.3 - 3.8 | 1.1 - 2.9 | 1" | 1275 x 850 x 1465 | 500
MSD-V 30 | 30 | 40 | 1.2 - 5.3 | 1.2 - 4.6 | 1.2 - 4.0 | 1 1/4" | 1575 x 1030 x 1755 | 695
MSD-V 37 | 37 | 50 | 1.3 - 6.8 | 1.3 - 5.8 | 1.3 - 5.0 | 1 1/4" | 1575 x 1030 x 1755 | 715
MSD-V 45 | 45 | 60 | 1.3 - 7.6 | 1.3 - 6.8 | 1.2 - 5.9 | 1 1/4" | 1575 x 1030 x 1755 | 945
MSD-V 55 | 55 | 75 | 2.5 - 9.9 | 2.4 - 8.2 | 2.6 - 7.4 | 1 1/2" | 2000 x 1200 x 1810 | 1290
MSD-V 75 | 75 | 100 | 2.6 - 12.9 | 2.5 - 10.9 | 2.5 - 9.6 | 1 1/2" | 2000 x 1200 x 1810 | 1390
MSD-V 90 | 90 | 125 | 6.2 - 16.8 | 6.0 - 14.4 | 6.2 - 12.3 | 2" | 2500 x 1400 x 2037 | 2020
MSD-V 110 | 110 | 150 | 6.6 - 20.1 | 7.1 - 17.3 | 7.0 - 15.0 | 2" | 2500 x 1400 x 2037 | 2380

Technical specifications

• Product family: MSD-V series (variable-speed industrial compressors)
• Available power range: 18.5 to 315 kW
• Maximum ambient operating temperature: up to 43°C
• Energy savings: up to 35% (variable-speed operation)
• Drive: direct 1:1 (flexible coupling, bell housing protection)
• Electric motor: WEG, IP55, class F insulation
• Air-end: TAMROTOR series ENDURO
• Controller: SMARTRONIC / SMARTRONIC PLUS (alarms, preventive maintenance, remote control, Master/Slave via serial link, weekly timer, MODBUS)
• Electrical components: SCHNEIDER ELECTRIC (integrated short-circuit protection)
• Cooling: EBM-PAPST air cooling fan
• Inverter: DANFOSS
• Design priorities: reduced maintenance costs, elimination of unload phases, extended service life, quick start-up and easy servicing
