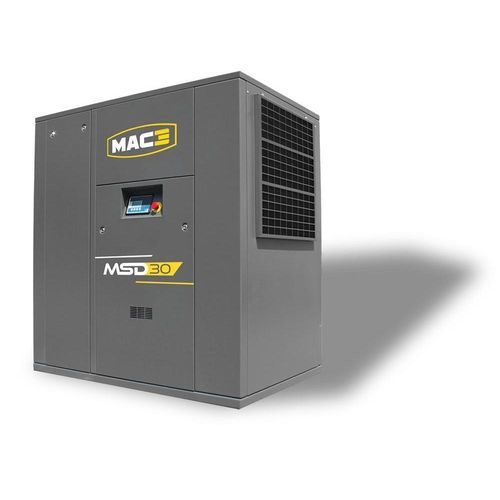

Screw compressor MSD series

airelectricstationary

Overview
Equipped with recognized components, the MSD series of industrial compressors delivers direct-drive compressed air from 22–315 kW for demanding industrial applications.

General features

• Robust construction
• High performance
• Compact footprint
• Low operating costs

Highlights
Performance

• Optimal specific power
• Operates up to 43°C ambient
• Renowned component manufacturers
• Powerful electronic controller
• High efficiency thanks to direct drive
• Low maintenance cost
• Durable design for extended service life

Ergonomics

• Fast start-up
• User-friendly operation
• Easy maintenance access
• Electronic controller with monitoring
• Support for preventive maintenance

Equipment

• Electric motor WEG — IP55, class F insulation
• TAMROTOR air-end — ENDURO series
• Electronic controller SMARTRONIC LITE / SMARTRONIC: alarms, preventive maintenance, remote control, master/slave via serial link, weekly timer (≥ 30 kW), MODBUS (≥ 30 kW)
• SCHNEIDER ELECTRIC starter and protections: phase monitor relay, integrated short-circuit protection
• Direct drive: gears integrated in the air-end, flexible coupling, bell housing coupling protection
• EBM-PAPST cooling fan

Performance table (models and main data)
MODEL | kW | Hp | AIR FLOW M3/MIN (7.5 bar | 10 bar | 13 bar) | AIR OUTLET | DIMENSIONS (mm) | WEIGHT (kg)
MSD 22 | 22 | 30 | 4.0 | 3.6 | - | 1" | 1275 x 850 x 1465 | 538
MSD 30 | 30 | 40 | 5.5 | 4.5 | 3.9 | 1 1/4" | 1575 x 1030 x 1750 | 761
MSD 37 | 37 | 50 | 6.6 | 5.6 | 4.6 | 1 1/4" | 1575 x 1030 x 1750 | 869
MSD 45 | 45 | 60 | 8.5 | 7.1 | 5.7 | 1 1/2" | 2000 x 1200 x 1810 | 1461
MSD 55 | 55 | 75 | 9.8 | 8.7 | 7.0 | 1 1/2" | 2000 x 1200 x 1810 | 1520
MSD 75 | 75 | 100 | 12.6 | 11.0 | 9.2 | 1 1/2" | 2000 x 1200 x 1810 | 1690
MSD 90 | 90 | 125 | 16.2 | 13.7 | 11.2 | 2" | 2500 x 1400 x 2037 | 2240
MSD 110 | 110 | 150 | 19.5 | 17.9 | 14.0 | 2" | 2500 x 1400 x 2037 | 2640
MSD 132 | 132 | 180 | 23.4 | 20.0 | 16.5 | 2 1/2" | 2750 x 1750 x 2000 | 2970

Fields of application
Suitable for woodworking, power generation, metallurgy, heavy industry, surface treatment, mines and quarries, automotive and other industrial uses.

Technical specifications

• Series: MSD (direct drive industrial compressors)
• Power range: 22–315 kW
• Air-end: TAMROTOR ENDURO series
• Motor: WEG electric motor, IP55, class F insulation
• Controller: SMARTRONIC LITE / SMARTRONIC — alarms, preventive maintenance, remote control, master/slave, weekly timer (≥ 30 kW), MODBUS (≥ 30 kW)
• Starter & protections: SCHNEIDER ELECTRIC — phase monitor relay, integrated short-circuit protection
• Drive: Direct drive with gears integrated in the air-end, flexible coupling, bell housing protection
• Cooling: EBM-PAPST cooling fan
• Operating ambient temperature: up to 43°C
• Air outlets: BSP sizes by model (1", 1 1/4", 1 1/2", 2", 2 1/2")
• Design priorities: robustness, compactness, low maintenance cost, extended service life
