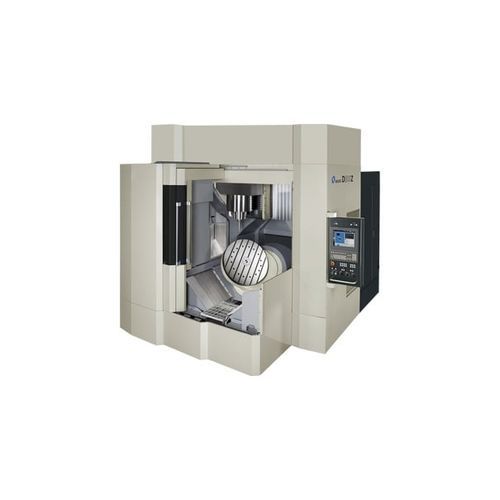

5-axis CNC machining center D800Z (50 Taper)verticalHSK A-63CAT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63, CAT40, HSK-A 100, CAT50
- Number of tool stations
- 48 tools
- Applications
- for molds, for large workpieces
- Other characteristics
- high-performance, high-rigidity
- X travel
1,200 mm
(47.24 in)- Y travel
1,100 mm
(43.31 in)- Z travel
650 mm
(25.59 in)- Rotational speed
12,000 rpm, 18,000 rpm
(75,398 rad.min-1, 113,097 rad.min-1)- Work feed X-axis
36,000 mm/min
(23.62 in/s)- Work feed Y-axis
36,000 mm/min
(23.62 in/s)- Work feed Z-axis
36,000 mm/min
(23.62 in/s)- Table load capacity
1,200 kg
(2,646 lb)- Tool weight (max)
20 kg
(44.1 lb)- Tool-changing time
3 s
