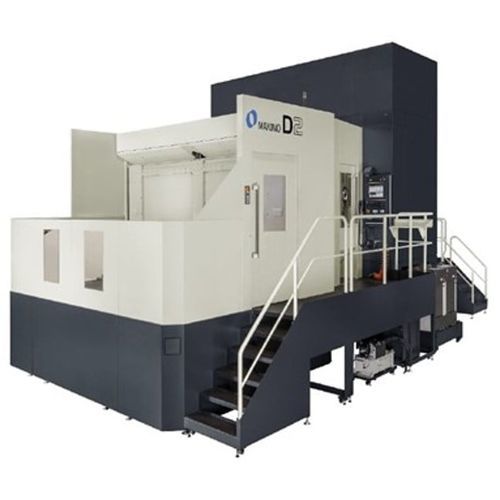

5-axis CNC machining center D2verticalHSK-A 10060 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-A 100
- Number of tool stations
- 60 tools
- Applications
- for molds, for large workpieces
- Other characteristics
- high-speed
- X travel
2,200 mm
(86.61 in)- Y travel
2,300 mm
(90.55 in)- Z travel
1,100 mm
(43.31 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
30 kW
(40.79 hp)- Work feed X-axis
40,000 mm/min
(26.25 in/s)- Work feed Y-axis
40,000 mm/min
(26.25 in/s)- Work feed Z-axis
40,000 mm/min
(26.25 in/s)- Table load capacity
5,000 kg
(11,023 lb)- Tool weight (max)
30 kg
(66.1 lb)
