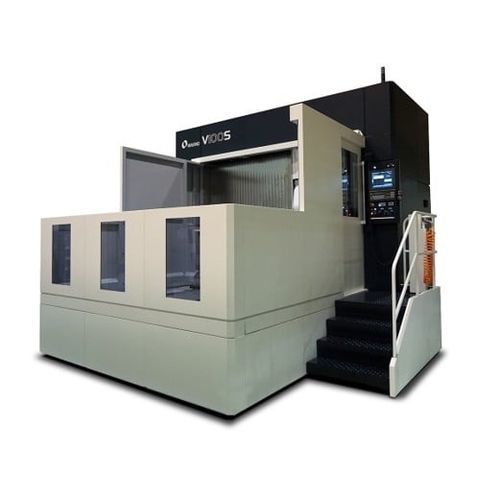

5-axis CNC machining center V100SverticalHSK A-6340 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63
- Number of tool stations
- 40 tools, 120 tools
- Applications
- for molds
- Other characteristics
- high-speed
- X travel
2,000 mm
(78.74 in)- Y travel
2,500 mm
(98.43 in)- Z travel
800 mm
(31.5 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Work feed X-axis
40,000 mm/min
(26.25 in/s)- Work feed Y-axis
25,000 mm/min
(16.4 in/s)- Work feed Z-axis
40,000 mm/min
(26.25 in/s)- Table load capacity
15,000 kg
(33,069 lb)- Tool weight (max)
8 kg
(17.6 lb)- Tool-changing time
8 s
