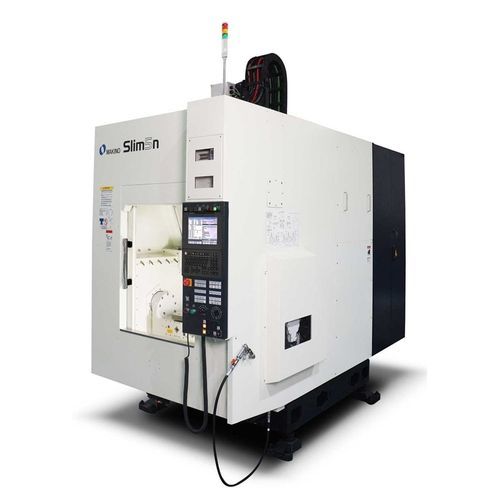

5-axis CNC machining center Slim5n 4+1verticalHSK-A5026 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-A50
- Number of tool stations
- 26 tools
- Other characteristics
- high-productivity, compact
- X travel
710 mm
(27.95 in)- Y travel
400 mm
(15.75 in)- Z travel
410 mm
(16.14 in)- Rotational speed
8,000 rpm, 16,000 rpm
(50,265 rad.min-1, 100,531 rad.min-1)- Work feed X-axis
Max.: 20,000 mm/min
(13.12 in/s)Min.: 1 mm/min
(0 in/s)- Work feed Y-axis
Max.: 20,000 mm/min
(13.12 in/s)Min.: 1 mm/min
(0 in/s)- Work feed Z-axis
Max.: 20,000 mm/min
(13.12 in/s)Min.: 1 mm/min
(0 in/s)- Table load capacity
600 kg
(1,323 lb)
