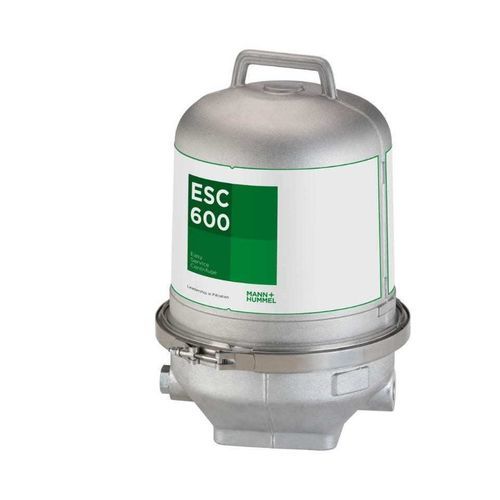

Petroleum product centrifuge ESC 600

cleaningde-oilingfloor-standing

Overview
The ESC 600 partial-flow centrifuge reliably retains contaminants from lubrication oil in diesel engines, extending oil change intervals and supporting cleaner combustion. Developed by MANN+HUMMEL in response to customer demand, the ESC 600 represents a new generation of partial-flow centrifuges designed for fast, clean and easy service. The use of advanced materials brings MANN+HUMMEL centrifuge technology to a new level of durability and serviceability.

Technical features

• Application: Partial-flow centrifuge for diesel engines
• System capacity: 200 to 1,500 l
• Oil pressure range: 3 to 7 bar
• Volume flow range: 55 to 76 l/min
• Rotor speed: 2,800 to 3,800 rpm
• Dirt capacity: 6 l
• Net weight: 25 kg

Product benefits

• Extends oil lifetime and service intervals
• Reduces maintenance costs and downtime
• Supports clean combustion and improved fuel efficiency
• Clean, fast and simple servicing
• Maximizes equipment operating time

High performance details

• 1. Die-cast cover
• 2. Silicone rotor liner
• 3. Quick release rotor
• 4. Rapid drain cut-off valve

Specifications / technical data

• Application: Partial-flow centrifuge for diesel engines
• System capacity: 200 to 1,500 l
• Oil pressure range: 3 to 7 bar
• Volume flow range: 55 to 76 l/min
• Rotor speed: 2,800 to 3,800 rpm
• Dirt capacity: 6 l
• Net weight: 25 kg
