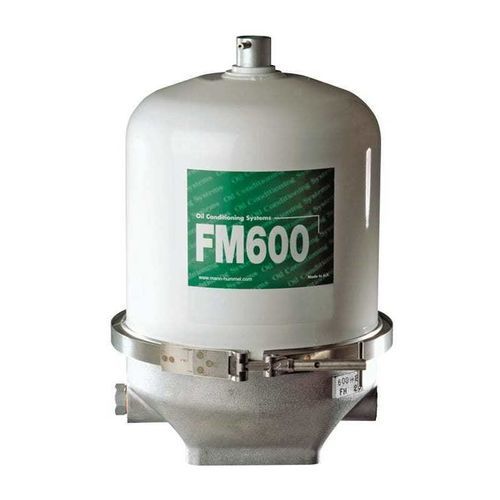

Petroleum product centrifuge FM600

cleaningde-oilingfloor-standing

Overview
The FM200/400/600 oil centrifuges are designed to extend the service life of lubrication oil in industrial and marine engines. Using centrifugal forces generated by an oil-driven spinning rotor, these units remove particles below one micrometer and reduce wear in the oil circulation system.

Product benefits

• Consistent high-efficiency separation throughout service life
• Extends lubrication oil life
• Longer oil service intervals
• Reduces engine wear
• Minimizes application downtime

Technical features
Technical features — FM200 | FM400 | FM600
Application: Engines with small to medium capacity | Engines with medium to large capacity | Large-capacity heavy engines
System capacity: 40 to 170 l | 200 to 1,500 l | 200 to 1,500 l
Oil pressure range: 3 to 7 bar | 3 to 7 bar | 3 to 7 bar
Volume flow range: 12 to 21 l/min | 33 to 51 l/min | 55 to 76 l/min
Rotor speed: 2700 to 4850 rpm | 2900 to 4650 rpm | 2800 to 3800 rpm
Dirt capacity: 2 l | 4 l | 6 l
Net weight: 9.5 kg | 22 kg | 25 kg

Technical specifications

• FM200 — Application: engines with small to medium capacity; System capacity: 40–170 l; Oil pressure range: 3–7 bar; Volume flow range: 12–21 l/min; Rotor speed: 2700–4850 rpm; Dirt capacity (collector): 2 l; Net weight: 9.5 kg
• FM400 — Application: engines with medium to large capacity; System capacity: 200–1,500 l; Oil pressure range: 3–7 bar; Volume flow range: 33–51 l/min; Rotor speed: 2900–4650 rpm; Dirt capacity (collector): 4 l; Net weight: 22 kg
• FM600 — Application: large-capacity heavy engines; System capacity: 200–1,500 l; Oil pressure range: 3–7 bar; Volume flow range: 55–76 l/min; Rotor speed: 2800–3800 rpm; Dirt capacity (collector): 6 l; Net weight: 25 kg
• Separation performance: removes particles below one micrometer by centrifugal separation
