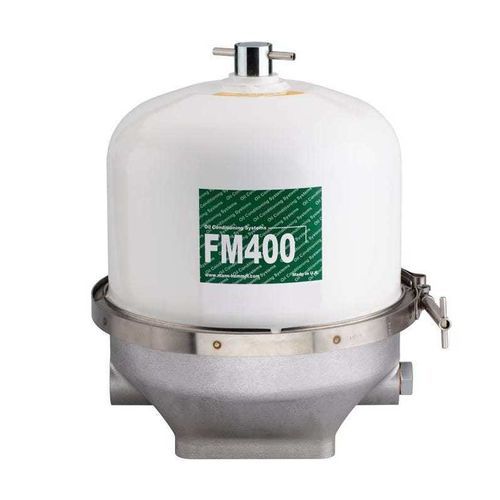

Petroleum product centrifuge FM400

de-oilingfloor-standinghigh-speed

Product description
The centrifuges FM200/400/600 are designed to extend the service life of lubrication oil for industrial and marine engines. Using centrifugal forces generated by an oil-driven rotor, this filtration method removes particles below 1 µm, significantly reducing wear in the oil circulation system.

Product benefits

• Highly efficient separation throughout service life
• Extends oil life
• Longer oil service intervals
• Reduces engine wear
• Reduces application downtime

Technical features (table)
Technical features | FM200 | FM400 | FM600
Application | Engines with small to medium capacity | Engines with medium to large capacity | Large capacity heavy engines
System capacity | 40 to 170 l | 200 to 1,500 l | 200 to 1,500 l
Oil pressure range | 3 to 7 bar | 3 to 7 bar | 3 to 7 bar
Volume flow range | 12 to 21 l/min | 33 to 51 l/min | 55 to 76 l/min
Rotor speed | 2,700 to 4,850 rpm | 2,900 to 4,650 rpm | 2,800 to 3,800 rpm
Dirt capacity | 2 l | 4 l | 6 l
Net weight | 9.5 kg | 22 kg | 25 kg

Further information

• Centrifuges_GenSet_Case Study (1 MB)
• Centrifuges_Marine_Case Study (4 MB)

Technical specifications

• Models: FM200, FM400, FM600
• Application: industrial & marine engine lubrication oil filtration
• Filtration principle: centrifugal separation removing particles below 1 µm
• Oil pressure range: 3 to 7 bar
• Rotor speed ranges per model: FM200 2,700–4,850 rpm; FM400 2,900–4,650 rpm; FM600 2,800–3,800 rpm
• Volume flow ranges per model: FM200 12–21 l/min; FM400 33–51 l/min; FM600 55–76 l/min
• System capacity: FM200 40–170 l; FM400/FM600 200–1,500 l
• Dirt capacity per model: FM200 2 l; FM400 4 l; FM600 6 l
• Net weight per model: FM200 9.5 kg; FM400 22 kg; FM600 25 kg
