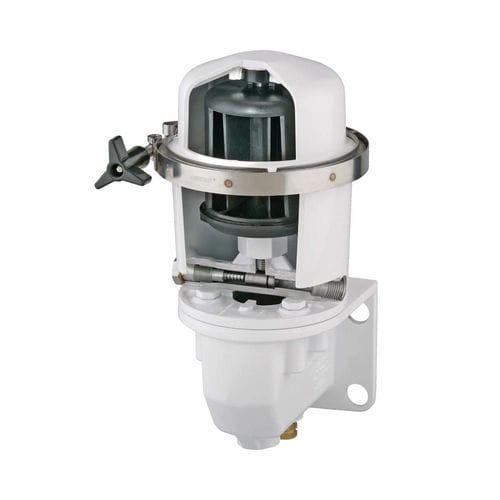

Process centrifuge FM050P-LCB

filter

Overview
The FM050P-LCB centrifuge series is a mechanically driven oil cleaner designed to extend the service life of lubrication oil in agricultural, heavy on-road and small industrial engines. Using centrifugal forces generated by a rotating oil-powered rotor, the unit separates and retains particles smaller than one micrometer. The integrated LCB (Level Control Base) float switch permits low-pressure air to return the separated oil to the sump, increasing installation flexibility.

Product benefits

• Consistent high-efficiency separation throughout service life
• Extended oil service intervals and lower operating costs
• Reduced engine wear and improved component protection
• Incinerable rotor for simplified, environmentally compliant disposal

Technical features (table)
Technical features | FM050P
System capacity | 15 to 90 l
Oil pressure range | 3 to 7 bar
Volume flow range | 5.5 to 8.4 l/min
Rotor speed | 5,800 to 8,900 rpm
Dirt capacity | 0.5 l
Net weight | 4.9 kg

Technical specifications

• System capacity: 15 to 90 l
• Oil pressure range: 3 to 7 bar
• Volume flow range: 5.5 to 8.4 l/min
• Rotor speed: 5,800 to 8,900 rpm
• Dirt capacity: 0.5 l
• Net weight: 4.9 kg
• Removes particles below one micrometer
• Integrated oil float switch (LCB – Level Control Base) enabling oil return to sump via low-pressure air
• Suitable for agricultural, heavy on-road and small industrial engines
• Incinerable rotor for environmentally friendly disposal
