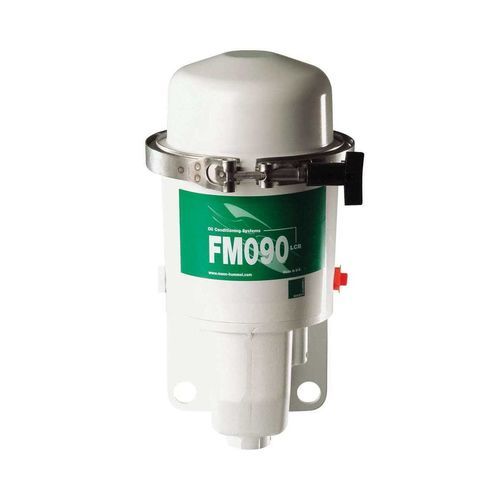

Petroleum product centrifuge FM090-LCB

oil testde-oilingfloor-standing

Product description
The FM090-LCB centrifuge is designed to extend lubrication oil life for heavy on‑road vehicles and small industrial engines. The unit uses centrifugal forces generated by an oil-driven rotor to separate particles smaller than one micrometer. The integrated oil float switch (Level Control Base — LCB) enables return of oil to the sump using low‑pressure air, allowing flexible mounting and simplified installation.

Key benefits

• Consistent high-efficiency particle separation throughout service life
• Extends oil life and increases service intervals
• Reduces engine wear and maintenance costs
• Integrated cut-off valve diverts oil back into sump at low oil pressure

Technical features

• System capacity: 15 to 90 L
• Oil pressure range: 3 to 7 bar
• Volume flow range: 5.8 to 10 L/min
• Rotor speed: 5,100 to 8,400 rpm
• Dirt capacity: 0.9 L
• Net weight: 3.5 kg
• Removes particles below one micrometer
• Integrated oil float switch (Level Control Base - LCB) allowing oil return to sump by low-pressure air

Installation and maintenance
Mounting is flexible thanks to the LCB return function; the centrifuge can be installed in locations where direct gravity return is not possible. Routine maintenance consists of periodic rotor inspection and emptying of collected contaminants. Replacement parts are limited to rotor and seals, reducing downtime.

Applications

• Heavy on-road engines (trucks, buses)
• Small industrial engines and generators
• Mobile machinery requiring extended oil life
