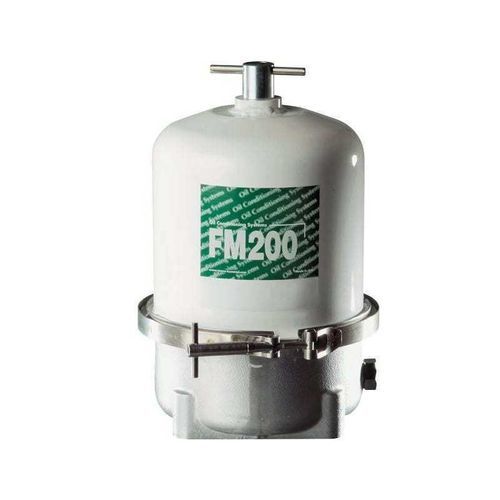

Petroleum product centrifuge FM200

de-oilinghigh-speed

Product overview
The FM200, FM400 and FM600 centrifuges are industrial centrifuges for lubricating oil separation. Using high-speed rotating rotors driven by the oil flow, they separate solid contaminants down to 1 µm, helping to reduce wear in engine lubrication systems and extend oil service life.

Key benefits

• Effective separation of particles below 1 µm throughout service life
• Extends lubricant life and increases oil change intervals
• Reduces engine and system wear
• Minimizes operational downtime
• Consistent performance under varying operating conditions

Technical specifications
Specification | FM200 | FM400 | FM600
Application | Engines with small to medium capacity | Engines with medium to large capacity | Large capacity heavy engines
System capacity | 40 to 170 l | 200 to 1,500 l | 200 to 1,500 l
Oil pressure range | 3 to 7 bar | 3 to 7 bar | 3 to 7 bar
Volume flow range | 12 to 21 l/min | 33 to 51 l/min | 55 to 76 l/min
Rotor speed | 2,700 to 4,850 rpm | 2,900 to 4,650 rpm | 2,800 to 3,800 rpm
Dirt capacity | 2 l | 4 l | 6 l
Net weight | 9.5 kg | 22 kg | 25 kg

Models and application

• FM200: for small to medium engines; system capacity 40–170 l; flow 12–21 l/min; rotor speed 2,700–4,850 rpm; dirt capacity 2 l; net weight 9.5 kg
• FM400: for medium to large engines; system capacity 200–1,500 l; flow 33–51 l/min; rotor speed 2,900–4,650 rpm; dirt capacity 4 l; net weight 22 kg
• FM600: for large capacity heavy engines; system capacity 200–1,500 l; flow 55–76 l/min; rotor speed 2,800–3,800 rpm; dirt capacity 6 l; net weight 25 kg
