Piston valve INVA 32
pneumatically-operatedelectrically-actuatedstop

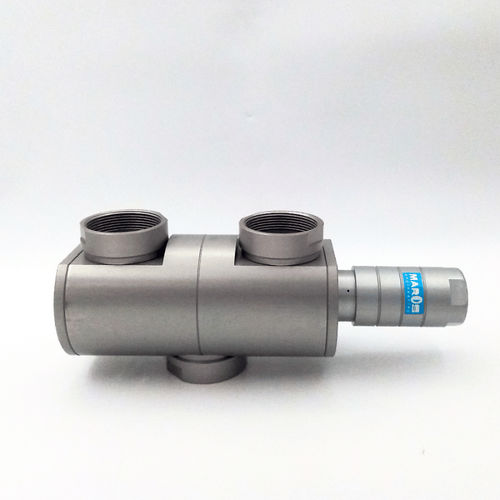

Piston valve - INVA 32 - MAROS Engineering - pneumatically-operated / electrically-actuated / stop
Piston valve - INVA 32 - MAROS Engineering - pneumatically-operated / electrically-actuated / stop
Piston valve - INVA 32 - MAROS Engineering - pneumatically-operated / electrically-actuated / stop - image - 2
Add to favorites
Compare this product

Characteristics

Type
piston
Operation
pneumatically-operated, electrically-actuated
Function
stop
Media
for air
Body
threaded
Applications
for vacuum, for pump, for automation, for materials handling, conveying, for packaging, for suction cup, for blowers
Material
anodized aluminum
Number of channels
3/2
Other characteristics
double-acting, with actuator, pneumatic piston, pre-assembled, with internally-threaded connectors, ATEX
DN

1.5 in, 2 in, 2.5 in

Pressure

Min.: 4 bar
(58 psi)

Max.: 6 bar
(87 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 140 °C
(284 °F)

Description

3-way 2-position vacuum valve VACUUM/VACUUM BREAKER function when used with vacuum pumps Diverter valve function when used with blowers Available with double-acting pneumatic actuator or single-acting electric actuator Advantages • Rapid vacuum interception and interruption • Switch box for remote control of valve status on request • Maximum versatility of use with both vacuum pumps and blowers Applications • Gripping and release function in automatic handling operations • Pneumatic conveying (under pressure or vacuum) • Quick grab and release functions in automatic loaders • Suction line changeover capability Upon request Cert. ATEX (only pneumatic drive type) 2 reed sensor switch-box for valve status remote control Version with electric actuator Voltage - 24 VDC Power coil - 23 A Holding coil - 0.28 A Electric connections - FASTON
