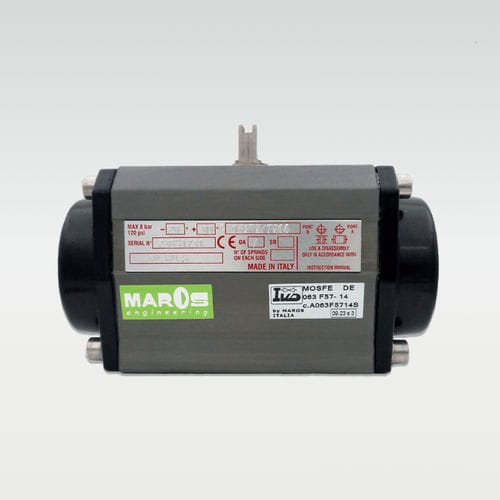

Pneumatic valve actuator Mosferotaryrack-and-pinionsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- rack-and-pinion
- Configuration
- double-acting, single-acting
- Protection class
- ATEX
- Other characteristics
- aluminum, for butterfly valves, stainless steel, for ball valves
- Torque
Min.: 4 Nm
(2.95 ft.lb)Max.: 13,367 Nm
(9,858.99 ft.lb)- Pressure
Min.: 1 bar
(14.5 psi)Max.: 8 bar
(116 psi)- Ambient temperature
Min.: -60 °C
(-76 °F)Max.: 150 °C
(302 °F)- Rotation angle
90 °, 120 °, 180 °
Min.: 90 °
Max.: 180 °
- Operating time
Min.: 1 s
Max.: 11 s
- Weight
Min.: 0.42 kg
(0.93 lb)Max.: 279 kg
(615.09 lb)
Description
All applications where pneumatic actuation is required for ball and butterfly valves
Versions for ultra-low, low, medium or high temperature range (standard version -20 / + 80° C)
Catalogs
MOSFE
5 Pages
