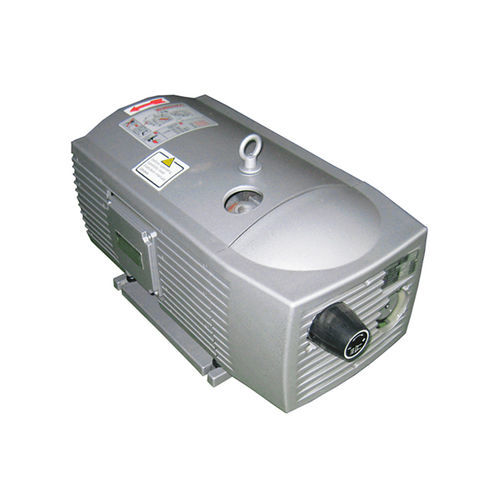

Rotary vane vacuum pump MVS-V010lubricatedsingle-stagecompact
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Other characteristics
- compact
- Ultimate vacuum
150 mbar
(2.18 psi)- Flow rate
10 m³/h, 12 m³/h
(353.15 ft³/h, 423.78 ft³/h)- Power
0.37 kW, 0.44 kW
(0.5 hp, 0.6 hp)- Operating temperature
Max.: 78 °C
(172 °F)Min.: 0 °C
(32 °F)- Length
426 mm
(17 in)- Width
202 mm
(7.95 in)- Height
192 mm
(7.56 in)- Noise level
58 dB, 60 dB
- Weight
21 kg
(46.3 lb)
Description
vacuum pumps are compact, dependable and extremely powerful.
Its robust design makes it the right choice for 24-hour operation in industrial applications.
It is particularly suitable for demanding industrial applications.
It is equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime.
This, combined with the pump’s accessible design, results in minimal pump downtime.
