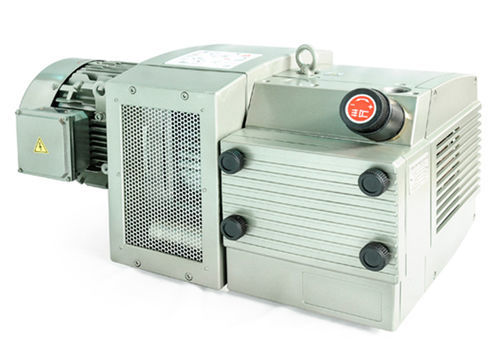

Rotary vane vacuum pump MVS-V100

for laboratoryfor packagingair-cooled

MVS-V100 vacuum pumps are compact, dependable and extremely powerful. Its robust design makes it the right choice for 24-hour operation in industrial applications. It is particularly suitable for demanding industrial applications. It is equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the pump’s accessible design, results in minimal pump downtime. Applications: - Vacuum packaging - Degassing of materials - Drying - Gripping and clamping of parts - Evacuation - Forming or rolling - Toilets with vacuum systems - Packaging and printing Product dimensions / photographs: Click to enlarge dimensional diagrams or images of the product. Dimensions: - a: 41 - b: 239 - b1: 117 - c: 33 - d1: G1-1/2" - e1: 97 - f: 295 - g: 415 - g1: 228.5 - g2: 186.5 - h: 156 - h1: 301 - h3: 328 - h4: 325 - l: 140 - k: 530 - k1: 540 - k2: 565 - km: 375 - kl: 905 - o: 64 - p: 336 - Øs: 12 - s1: M8 Technical data: - Flow rate: 100 m³/h (50 Hz), 120 m³/h (60 Hz) - Ultimate pressure: 150 mbar - Motor power: 3 kW (50 Hz), 3.6 kW (60 Hz) - Nominal motor speed: 1420 rpm (50 Hz), 1700 rpm (60 Hz) - Noise level: 75 dB(A) (50 Hz), 77 dB(A) (60 Hz) - Weight: 105 kg - Cooling system: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet/outlet: G(BSP) 1-1/2"
