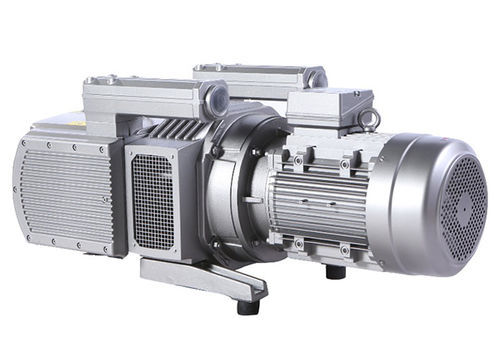

Vacuum pump for industrial applications MVS-V360

for laboratoryfor the chemical industryfor exhaust gas

MVS-V vacuum pumps are compact, dependable and extremely powerful. Its robust design makes it the right choice for 24-hour operation in industrial applications. It is particularly suitable for demanding industrial applications. It is equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the pump’s accessible design, results in minimal pump downtime. - Applications: - Vacuum packaging - Degassing of materials - Drying - Gripping and clamping of parts - Evacuation - Forming or rolling - Toilets with vacuum systems - Packaging and printing - Product dimensions / photographs: Click to enlarge dimensional diagrams or images of the product. - Dimensions: - MVS-V360: 645 x 380 x 40 mm - Connections: G2", G2-1/2" - Weight: 280 kg - Technical data: - Flow rate: 351 m³/h - Ultimate pressure: 200 mbar - Motor power: 5.5 kW - Nominal motor speed: 1.42 rpm - Noise level: 78 dB(A) - Cooling system: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet: 2-1/2" G(BSP) - Gas outlet: 2-1/2" G(BSP)
