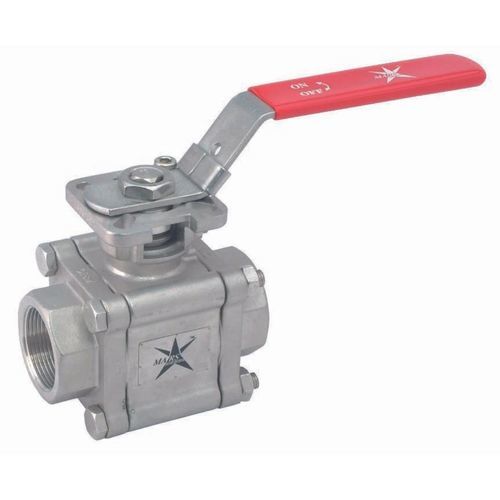

Ball valve 88 series

manual3-piececarbon steel

Overview
Series 88 is a 3-piece heavy-duty ball valve family (MARS) comprising 144 models across a wide range of sizes and configurations. The range supports industrial service with options including fire-safe variants, CF8M and WCB body materials, PTFE/RPTFE seats and both full and reduced port designs.

Key features

• 3-piece heavy-duty ball valve construction suitable for industrial applications
• Fire-safe variants available
• Body materials: CF8M (stainless steel) and WCB (carbon steel)
• Seat materials: PTFE / RPTFE
• Port options: Full port and Reduced port
• End cap styles: Flower and Round
• Operation: Bare shaft for actuation or with handle for manual operation
• Design pressure ratings vary by size and model

Available sizes (examples shown on page)

• 1/4" , 3/8" , 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/2" , 3" , 4"

Available options & attributes

• End cap: Flower, Round
• Port: Full, Reduced
• Body: CF8M (stainless), WCB (carbon steel)
• Pressure rating examples: 2000 PSI / PN125, 1500 PSI / PN100, 1000 PSI / PN63 (model-dependent)
• Seats: PTFE / RPTFE
• Operation: Bare shaft (for actuation) or With handle (manual)

Representative variant table (columns shown; example row)
SKU | Size | Port | Pressure Rating | Body | Seats | Design | Price
V88-FS-CF8M-1-4IN-FLOWER-END-CAP-FULL-PORT-BARE-SHAFT | 1/4" | Full | 2000 PSI / PN125 | CF8M | PTFE / RPTFE | 3-piece heavy duty | £36.81

Notes

• 144 models in the Series 88 family cover combinations of sizes, porting, end-cap style, body material and operation.
• Pricing on the page is shown per unit (GBP) and varies by model and size.

Technical specifications

• Designation: Series 88
• Product type: 3-piece heavy-duty ball valve
• Number of models: 144
• Body materials: CF8M (stainless), WCB (carbon steel)
• Seat materials: PTFE / RPTFE
• End cap types: Flower, Round
• Port types: Full port, Reduced port
• Operation: Bare shaft (for actuation) or With handle (manual)
• Pressure rating examples: 2000 PSI / PN125, 1500 PSI / PN100, 1000 PSI / PN63 (model-dependent)
• Sizes available: 1/4" up to 4" (multiple intermediate sizes)
• Design: 3-piece construction, heavy duty
• Typical UK price examples on page: approximately £36.81 to £172.79 depending on model/size
