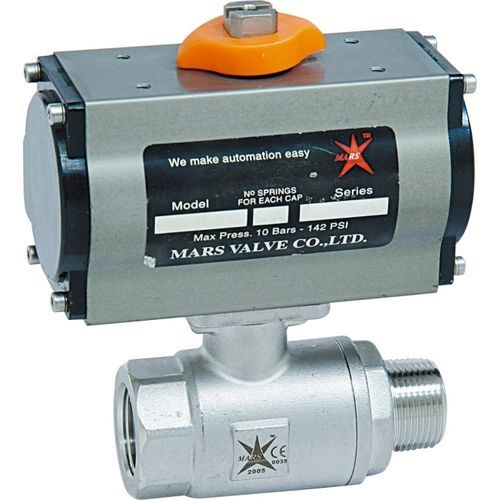

Ball valve 24isolationshut-offthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Function
- shut-off, isolation
- Body
- threaded, 2-piece
- Material
- stainless steel, PTFE
- Other characteristics
- high-pressure
- DN
Max.: 50.8 mm
(2 in)Min.: 6.35 mm
(0.25 in)- Pressure
Max.: 2,000 psi
Min.: 0 psi
- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
Product Overview
The two-piece high-pressure ball valve is engineered for industrial service up to 2000 PSI. Body in CF8M stainless steel, available with PTFE or RTFE seats and a blow-out proof stem for secure operation.
Specifications
Design: 2-piece
Port: Reduced
Size: 1/4 in to 2 in
Pressure rating: 2000 PSI max.
Body: CF8M stainless steel
Seats: PTFE / RTFE
Ends: NPT, BSP, BSPT
Temperature range: -20°C to +180°C
Features
Applications
Technical specifications
The two-piece high-pressure ball valve is engineered for industrial service up to 2000 PSI. Body in CF8M stainless steel, available with PTFE or RTFE seats and a blow-out proof stem for secure operation.
Specifications
Design: 2-piece
Port: Reduced
Size: 1/4 in to 2 in
Pressure rating: 2000 PSI max.
Body: CF8M stainless steel
Seats: PTFE / RTFE
Ends: NPT, BSP, BSPT
Temperature range: -20°C to +180°C
Features
- High pressure rating: 2000 PSI
- Blow-out proof stem for safety
- Reduced port for controlled flow
- RTFE seat option for aggressive media
Applications
- High-pressure process lines
- Oil & gas installations
- Chemical shut-off and isolation
- Hydraulic systems
Technical specifications
- Design: 2-piece
- Port: Reduced
- Size range: 1/4 in to 2 in
- Maximum pressure: 2000 PSI
- Body material: CF8M stainless steel
- Seat materials: PTFE or RTFE
- End connections: NPT, BSP, BSPT
- Temperature range: -20°C to +180°C
- Stem: Blow-out proof
