Ball valve 93
pneumaticelectrically-actuatedmanual

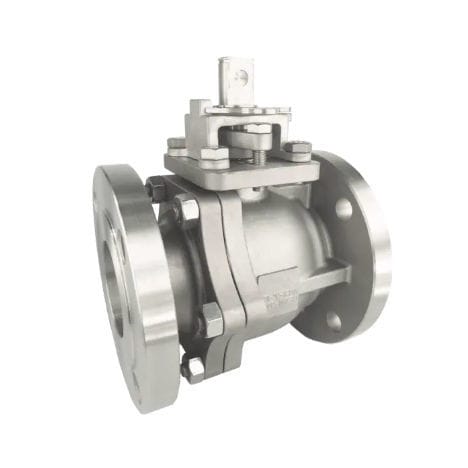

Ball valve - 93 - MARSVALVEUK - pneumatic / electrically-actuated / manual
Ball valve - 93 - MARSVALVEUK - pneumatic / electrically-actuated / manual
Add to favorites
Compare this product
Go to the MARSVALVEUK website for more information

Characteristics

Type
ball
Operation
manual, pneumatic, electrically-actuated
Body
flange, with ISO flange connections, in-line, 2-piece, coated
Applications
flange, gearbox
Material
stainless steel, carbon steel, PTFE
Other characteristics
ISO, full-flow, locking, with actuator, with bellows seal, with operating handle, fire-safe
DN

Max.: 200 mm
(7.874 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 16 bar
(232.1 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 180 °C
(356 °F)

Min.: -20 °C
(-4 °F)

Description

Overview
  • Two-piece flanged ball valve designed for economical isolation and inline serviceability. Full bore design minimises pressure drop.


Key features
  • Two-piece bolted body for easier maintenance and seat replacement
  • Full bore (full port) for reduced head loss
  • Seat materials: PTFE and reinforced variants available
  • Body materials: carbon steel (WCB) and stainless steel (CF8M) options
  • Actuation: manual lever, gear operator or ISO 5211-mounted pneumatic/electric actuators


Technical specifications
  • Pressure rating: up to PN16 (other ratings on request)
  • Temperature range: approx. -20°C to +180°C depending on seat material
  • Sizes: DN15–DN200 (½"–8")
  • End connections: raised-face flanges per EN 1092-1 / ASME B16.5


Applications
  • Suitable for water, oil, gas, HVAC and general industrial process lines
  • Typical uses: isolation valves, line shutdown, bypass and blending systems


Options & maintenance
  • Optional features: locking device, blow-out-proof stem, fire-safe seats, special coatings
  • Two-piece construction enables inline servicing of seats and stem without full pipeline removal


Compliance & ordering
  • Manufactured to common industry standards; specific certificates available on request
  • When ordering, specify size, body/seat materials, pressure rating and required actuation
