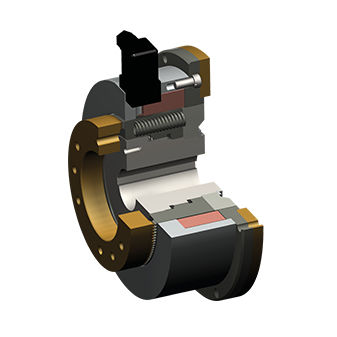

Toothed clutch 547 electromagneticspring
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- electromagnetic, spring
- Torque
Min.: 100 Nm
(73.7562 ft.lb)Max.: 1,600 Nm
(1,180.0994 ft.lb)- Rotational speed
Min.: 2,500 rpm
(15,707.96 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Power
Min.: 85 W
Max.: 295 W
Description
high torque transfer despite compact dimensions
special solutions on request
positive-locking transmission of torque without slip
engageable also at low relative speed
high range of temperatures
easy control via direct current
application-related customized tooth geometries
short cycle times
