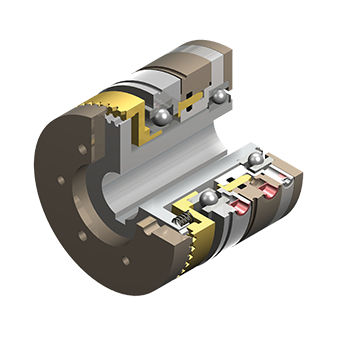

Toothed clutch 675 pneumatic
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- pneumatic
- Torque
Max.: 2,200 Nm
(1,622.6367 ft.lb)Min.: 100 Nm
(73.7562 ft.lb)- Rotational speed
2,000 rpm, 2,500 rpm, 3,000 rpm
(12,566.37 rad.min-1, 15,707.96 rad.min-1, 18,849.56 rad.min-1)
Description
positive-locking transmission of torque without slip
special solutions on request
pneumatic ventilated
no additional energy supply necessary
1/8“ ISO 228 thread compressed air connection point located on the outer envelope of the cylinder exterior
engageable also at low relative speed
high range of temperatures
application-related customized tooth geometries
Catalogs
Pneumatic tooth clutch Type 675
10 Pages
