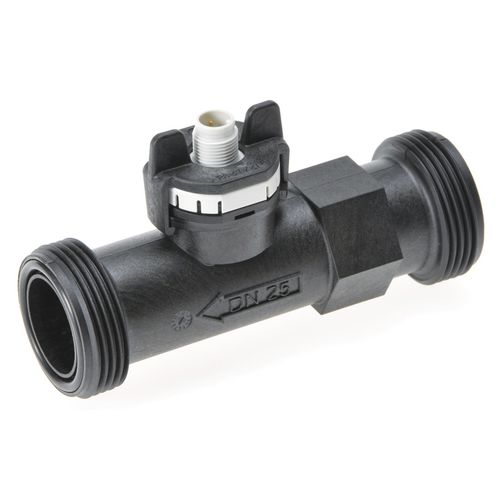

Vortex flow meter LVB-15-A

volumefor liquidsfor water

Fast response Compact, light-weight, cost-effective construction No moving parts; maintenance free Low pressure drop Features No moving parts makes it: - impervious to deposits - maintenance free Low pressure drop Mounting in any position Wide flow ranges Fast response Suitable for dirty water (circulating, well or waste water) Sustainable product design - Low power consumption - Lightweight and compact Measurement / control system Medium Water and water like liquids. (cooling, well, waste, pure, drinking, heating and tap water) This product is NOT compatible with flammable, corrosive or toxic liquids. Medium Temperature <+125°C Rangeability Up to 1:20 Response time (sensor) Signal delay: < 2 s Response time: < 500 ms Mechanical parts Material (wetted parts) Body: PA6T/6I (40% GF) Sensor paddle: ETFE Seals: EPDM Test pressure 18 bar(a) at +40°C Process connections G3/4 Weight 0.10 kg Electrical properties Power supply 8..33Vdc Load <(Uin-8V) / 20mA Electrical protection measures Short circuit, reverse voltage and external voltage protected within the admissible supply voltage Output 4..20mA | Flow calculations Q [l/min] = 3.125 x (I (mA) - 4 mA) Drinking water approval KTW / W270 / WRAS / ACS EMC EN 61326-2-3 Electrical connection M12 x 1
