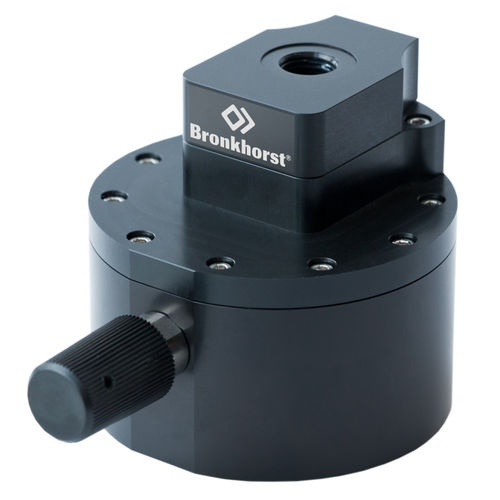

Thermal mass flow controller FC-001

for gasfor nitrogenfor air

Compact design Ruggedized aluminium housing No power required Leak-free valve Valve pin o-ring guarantees positive shut-off without stem damage Self-lubricating orifice liner assures long life Valve knob included for easy adjustment Measurement / control system Rangeability up to 1:100 Pressure sensitivity Less than 0,5-1% Rd/bar Technical specifications are based on Air at maximum FS Mechanical parts Min. ΔP 1 bar(d) Max. ΔP 7 bar(d) Process connections G 1/4" BSPP female Closing Clockwise Applications The fields of application for FLOW-CONTROL are diverse: Constant flow control of gases Constant flow control of liquids Process control Gas/liquid sampling Inert gas/liquid blanketing Pressure regulator of gas and liquids Maintaining constant flow rate
