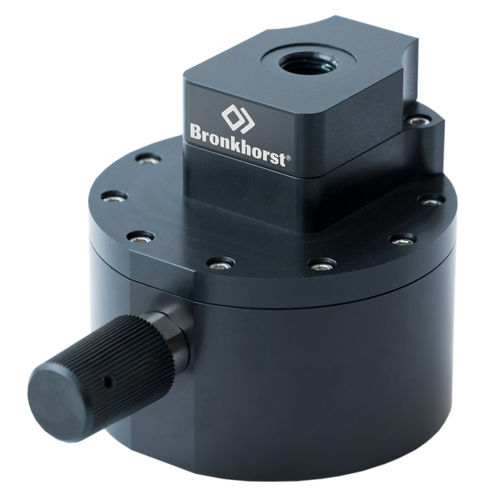

Compact design
Ruggedized aluminium housing
No power required
Leak-free valve
Valve pin o-ring guarantees positive shut-off without stem damage
Self-lubricating orifice liner assures long life
Valve knob included for easy adjustment
Measurement / control system
Rangeability
up to 1:100
Pressure sensitivity
Less than 0,5-1% Rd/bar
Technical specifications are based on Air at maximum FS
Mechanical parts
Test pressure
21 bar(a) / 300 psi(a)
Min. ΔP
1 bar(d)
Max. ΔP
7 bar(d)
Process connections
G 1/4" BSPP female
Closing
Clockwise
Applications
The fields of application for FLOW-CONTROL are diverse:
Constant flow control of gases
Constant flow control of liquids
Process control
Gas/liquid sampling
Inert gas/liquid blanketing
Pressure regulator of gas and liquids
Maintaining constant flow rate
