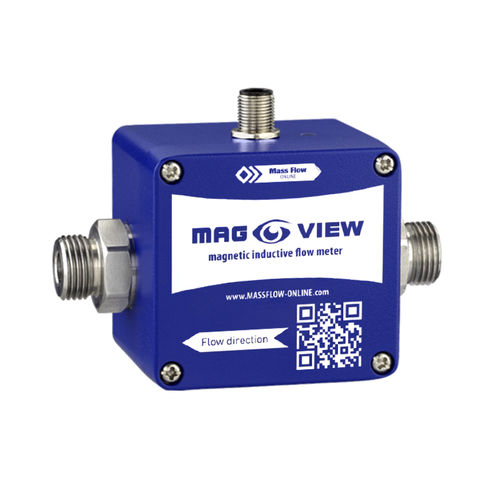

Magnetic flow meter MVM-002-PN

volumefor liquidsin-line

This instrument is only available on request. We do not have this instrument in stock, expect a delivery time of 5-6 weeks. After placing an order we will confirm a shipping date. No moving parts (no mechanical wear) Interference free operation Independence to inlet/outlet pipework Fast response Free pipe cross section: low ΔP, insensitive to contamination Features No mechanical wear No moving parts Ease of mounting and operation Mounting in any position Free pipe cross section No additional pressure drop Fast response (<500 ms) Insensitive with contaminated liquids Ideal solution for interference free operation combined with a long-life cycle Can be used in areas where flow sensors with moving parts cannot be applied Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines Applications The fields of application for this magnetic flow meter are diverse: Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm Water distribution Chemical feed Electrical properties Power supply 12 .. 24 Vdc ±10% Max. power consumption max. 150 mA Frequency output Pulse rate / K-factor : 10000 pulses/l Resolution : 0,1 ml/pulse Signal shape : Push-Pull Signal shape Square wave signal, pulse duty ratio 50:50, Push-Pull Signal current max. 100 mA, current limited
