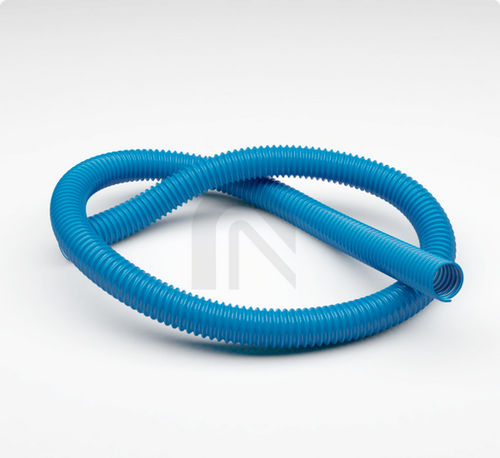

Transport hose Miniflex PUfor bulk materialsfor gasPU
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials, for gas
- Material
- PU
- Applications
- suction, transport, cleaning, conveying, for automotive applications, protection, air conditioning, for ventilation, for the steel industry, for the textile industry
- Other characteristics
- abrasion-resistant, flexible, chemical-resistant, small bend radius, lightweight, oil-resistant, UV-resistant, standard, microbe-resistant, IP68, wire-braided, crush-resistant, hydrolysis-resistant, heat/cold-resistant, for bulk materials
- Inner diameter
Max.: 51 mm
(2.008 in)Min.: 7 mm
(0.276 in)- Outer diameter
Max.: 58 mm
(2.283 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 0.23 bar
(3.336 psi)Min.: 0.08 bar
(1.16 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Delivered length
10 m, 25 m, 50 m
(32'09" , 82'00" , 164'00" )
Description
PU protective hose and suction hose with plastic-coated wire spiral, microbe-resistant, highly flexible.
Construction / Material
Type of construction - Miniflex hose
Spiral Design - plastic coated, made of steel wire
Material of the spiral - Spring steel
Execution of the wall - made of pure material, Wall thickness 0.3 - 1.2 mm, depending on DN
Properties
Specifications of the product - Protection class IP68, acc. to EN 60 529
Chemical Properties - good resistance to petrol, good resistance to chemicals, good resistance to oil, good UV resistance, good ozone resistance, hydrolysis resistant, microbe-resistant
Weight - heavy
Pressure Resistance - moderately pressure resistant
Colour - blue, RAL5015
-
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Application Areas
Areas of application - Plant & Mechanical Engineering, Robotics & Automation, Industry, Ventilation & air-conditioning, Waste disposal & cleaning technology, Conveying, lifting & feeding technology, Cable manufacturers, Textile, Metal & Toolmaking
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours
