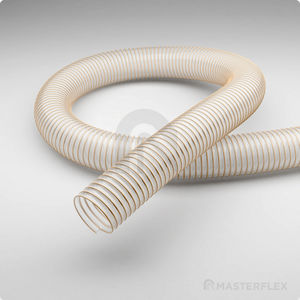

Transport hose Master-PUR Performance
for bulk materialsfor gaspolyurethane

transport hose
transport hose
Add to favorites
Compare this product


for bulk materials, for gas
transport, suction, construction, for the steel industry, for the paper industry, for ventilation, for the textile industry, cleaning, chemistry, conveying, for food industry applications, for automotive applications, air conditioning, for pharmaceutical applications, for agricultural applications, for the plastics industry
Other characteristics
chemical-resistant, flexible, halogen-free, abrasion-resistant, oil-resistant, UV-resistant, with smooth inner surface, anti-static, small bend radius, microbe-resistant, ATEX, spiral wire, vacuum, seamless, transparent, extruded
Inner diameter

Max.: 200 mm (7.874 in)

Min.: 38 mm (1.496 in)

Outer diameter

Max.: 215 mm (8.465 in)

Min.: 50 mm (1.969 in)


Max.: 4.35 bar (63.091 psi)

Min.: 0.8 bar (11.603 psi)


Max.: 90 °C (194 °F)

Min.: -40 °C (-40 °F)

Delivered length

Max.: 20 m (65'07")

Min.: 2.5 m (8'02")


PU suction hose & transport hose, extremely abrasion-resistant & vacuum-proof, seamless smooth inner lining, antistatic and microbe-resistant Construction / Material Type of construction - Profile extruded hose with metal spiral Execution of the wall - made of pure material, made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness approx. 2.5 mm Material of the wall - Polyurethane Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031 Specifications of the inner layer - extremely abrasion-resistant, super-strong inliner made of polyurethane 60° Shore A Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and good pressure resistance, particularly smooth on the inside, Configurable as a hose system with digital interface for compatibility with the AMPIUS® app
